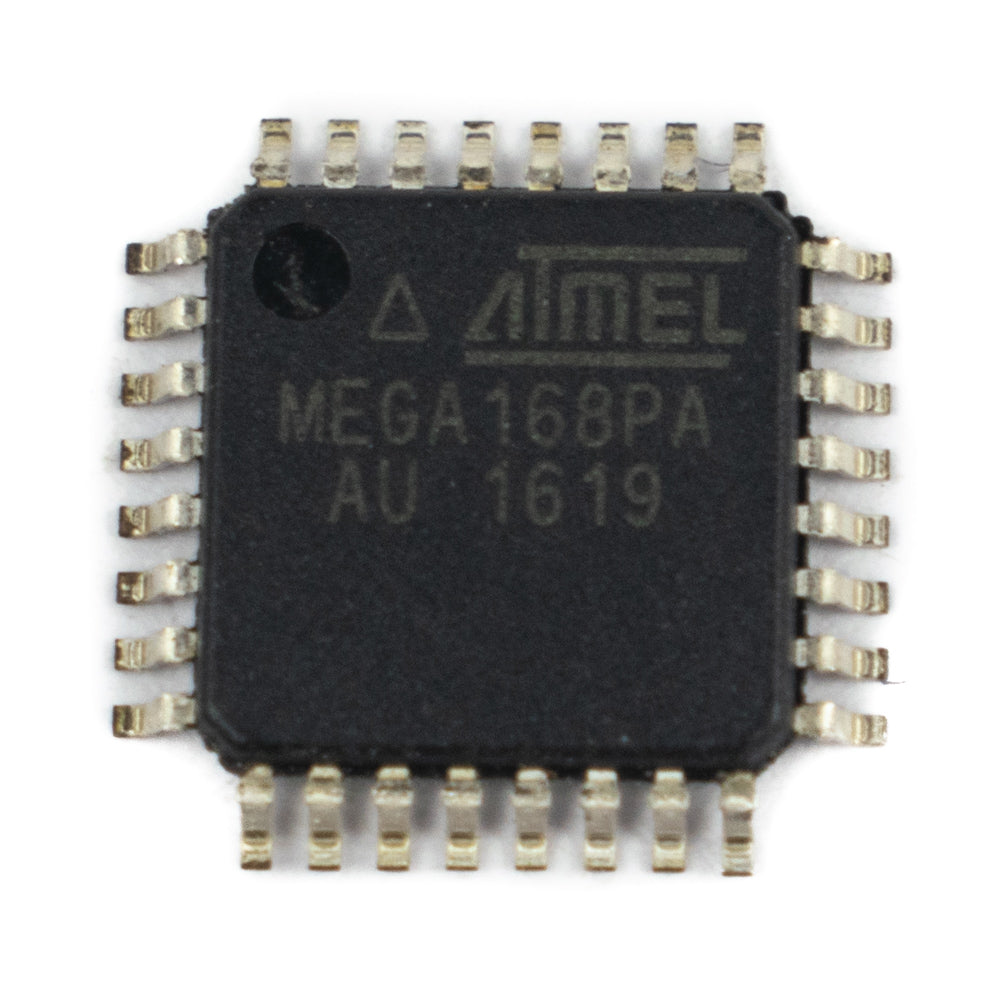

Microchip ATmega168PA-AU SMD IC

The ATmega168PA is a low power, CMOS 8-bit microcontroller based on the AVR,®, enhanced RISC architecture. By executing instructions in a single clock cycle, the devices achieve CPU, throughput approaching one million instructions per second (MIPS) per megahertz, allowing the system, designer to optimize power consumption versus processing speed., The high-performance Microchip Pico Power,® 8-bit AVR,® RISC-based microcontroller combines 16 KB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1 KB SRAM, 23 general-purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented Two-Wire serial interface, SPI serial port, 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts., By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, balancing power consumption and processing speed.

Datasheet

Features

• , 131 powerful instructions xÅ“ most single clock cycle execution
• , 32*8 general purpose working registers
• Fully static operation
• Up to 16MIPS throughput at 16MHz
• On-chip 2-cycle multiplier

● High endurance non-volatile memory segments

• , 4/8/16K bytes of in-system self-programmable flash program memory
• , 256/512/512 bytes EEPROM
• , 512/1K/1K bytes internal SRAM
• , Write/erase cycles: 10,000 flash/100,000 EEPROM
• , Optional boot code section with independent lock bits
• , In-system programming by an on-chip boot program
• , True read-while-write operation
• , Programming Lock for software security

● Peripheral features

• , Two 8-bit Timer/Counters with Separate Prescaler and compare mod
• , One 16-bit Timer/Counter with separate Prescaler, compare mode, and capture mode
• , Real-time Counter with separate oscillator
• , Six PWM channels
• , 8-channel 10-bit ADC
• , Temperature measurement
• , Programmable Serial USART
• , Master/slave SPI serial interface
• , Byte-oriented 2-wire serial interface (Philips I2C compatible)
• , Programmable watchdog timer with separate on-chip oscillator
• , On-chip analog comparator
• , Interrupt and wake up on pin change
