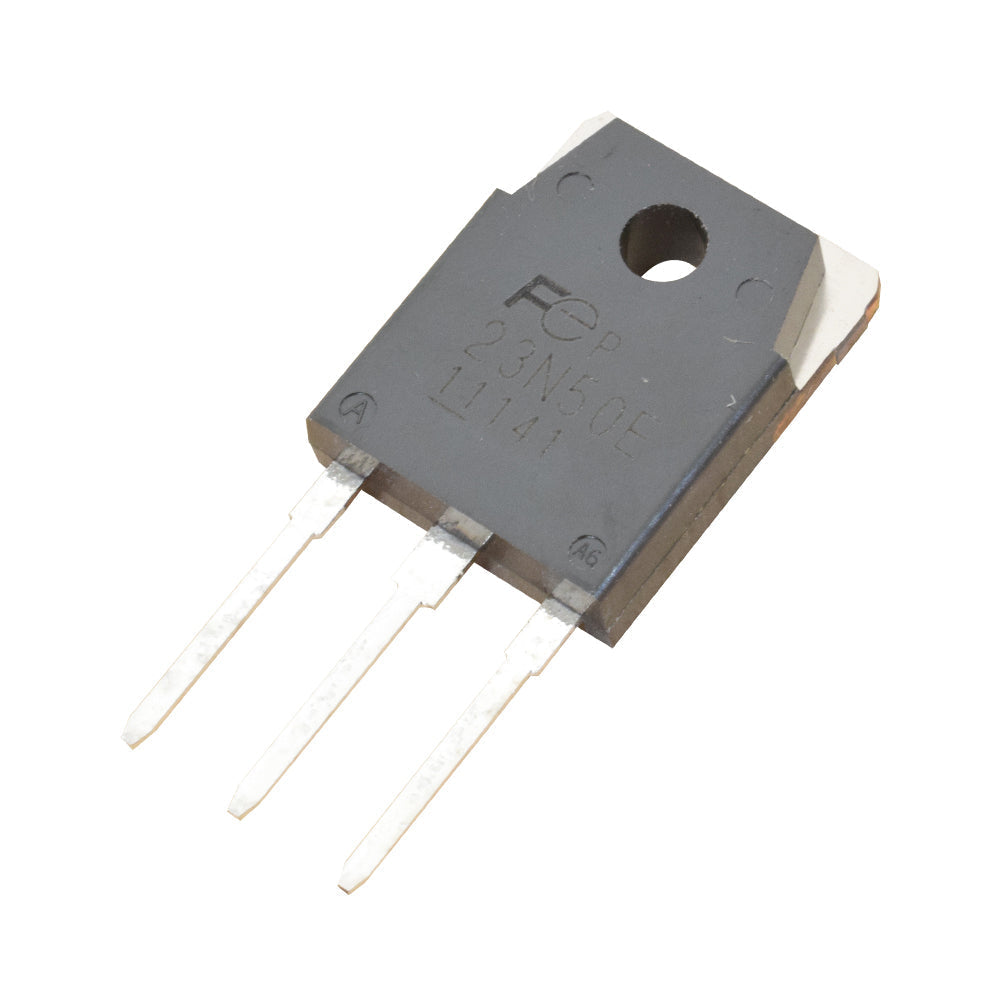

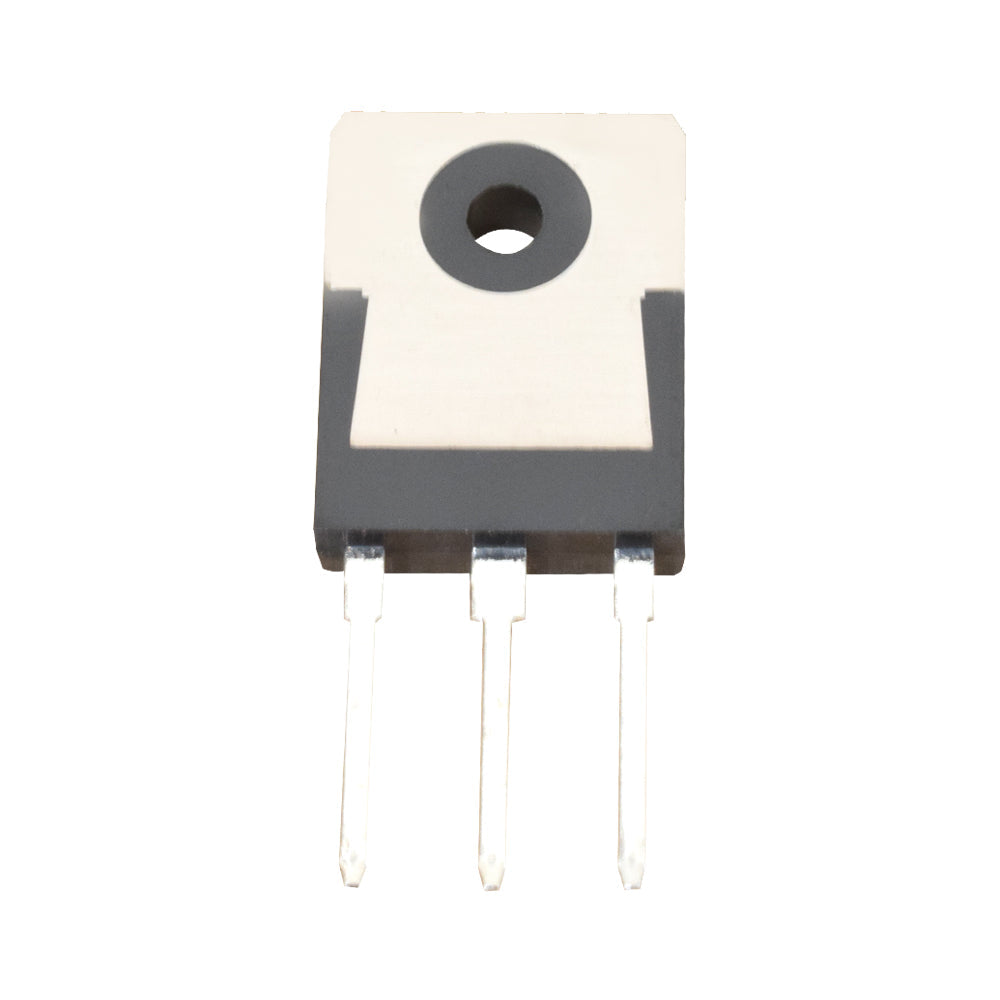

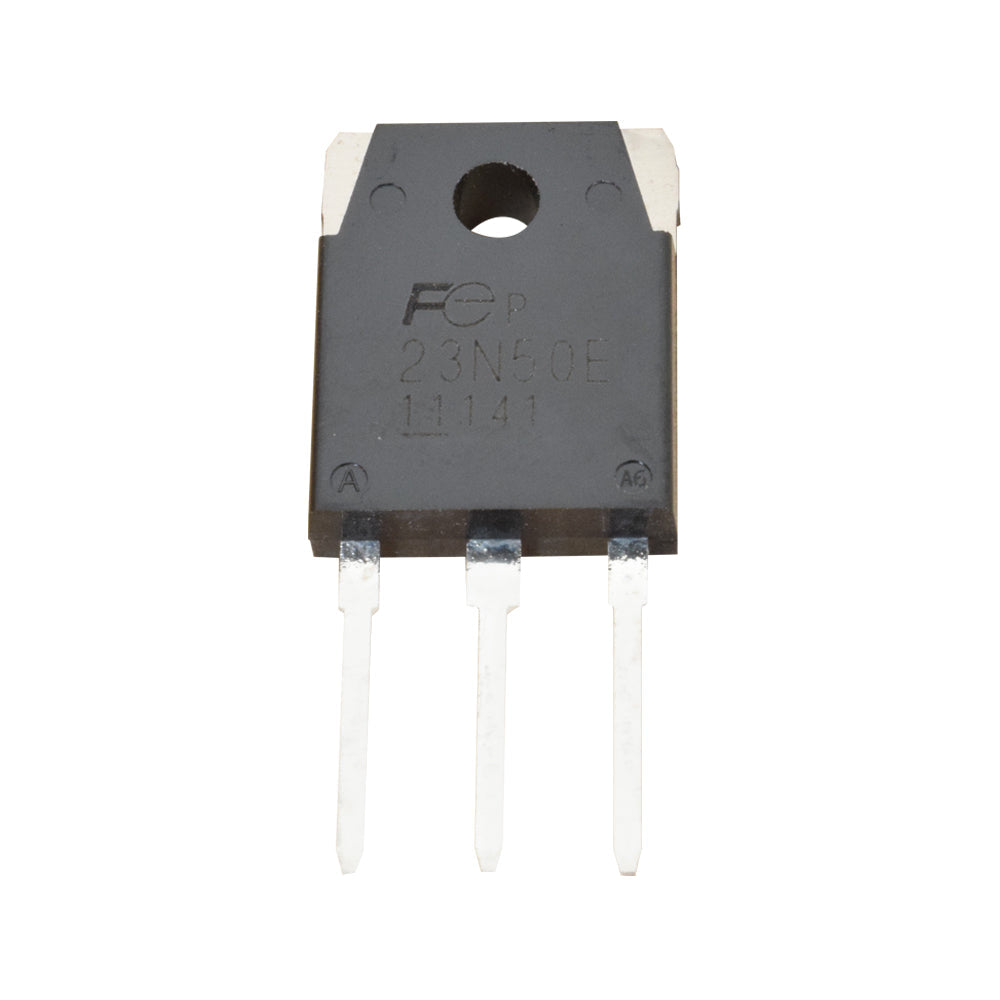

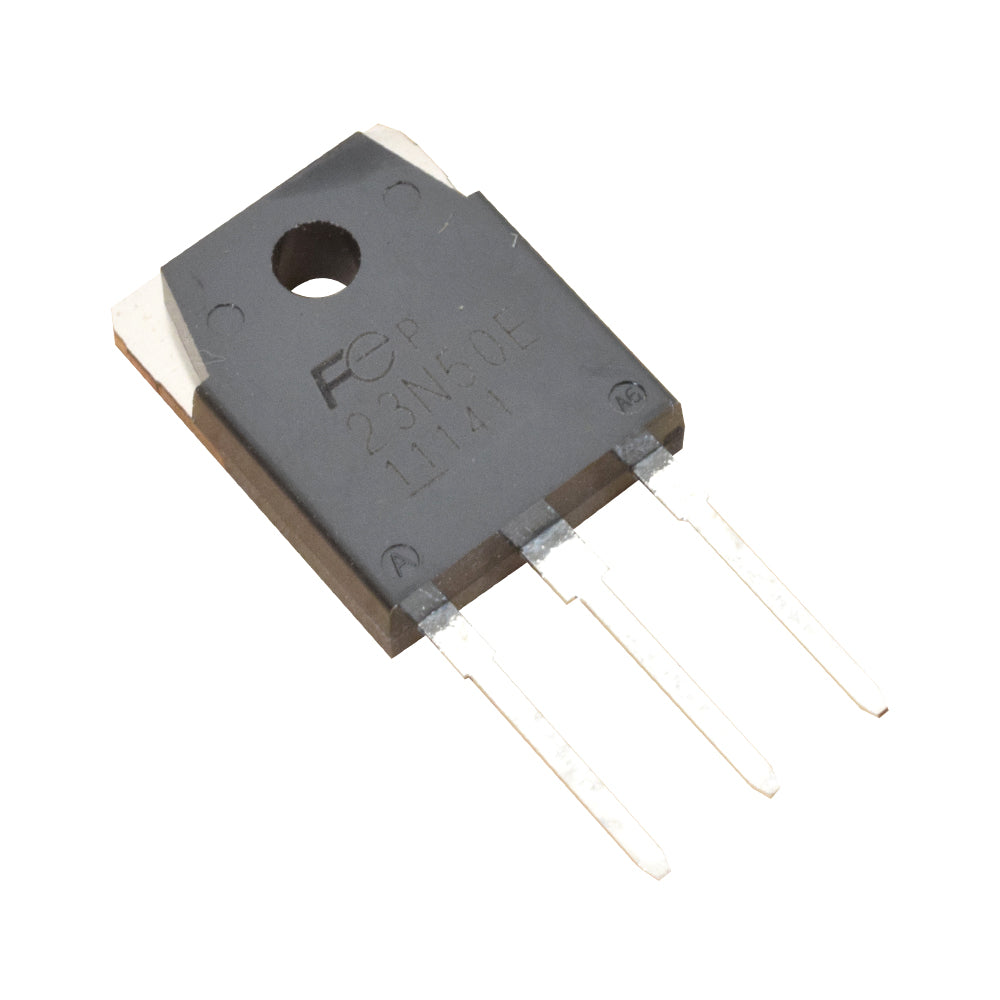

23N50E N-Channel Silicon Power MOSFET
23N50E N-Channel Silicon Power MOSFET
Regular price
Rs. 156.80
Regular price
Rs. 180.60
Sale price
Rs. 156.80
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
23N50E is an N-Channel silicon power MOSFET used to switch the power. It's also known as an electronic switch. It's used in a switching regulator, UPS, SMPS, snubber and other general switching applications.
Features
-
Lower RDS(on) characteristic
-
More controllable switching dv/DT by gate resistance
-
Smaller VGSringing waveform during switching
-
A narrow band of the gate threshold voltage (3.0±0.5V)
-
High avalanche durability
-
Maintains both low power loss and low noise
Specification
| Model | 23N50E |
| Type | MOSFET |
| Voltage | 500V |
| Drain Current | 23A |
| Reverse Recovery change | 8Micro C |
| Gate source voltage | 30V |
| Total power dissipation | 315W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
