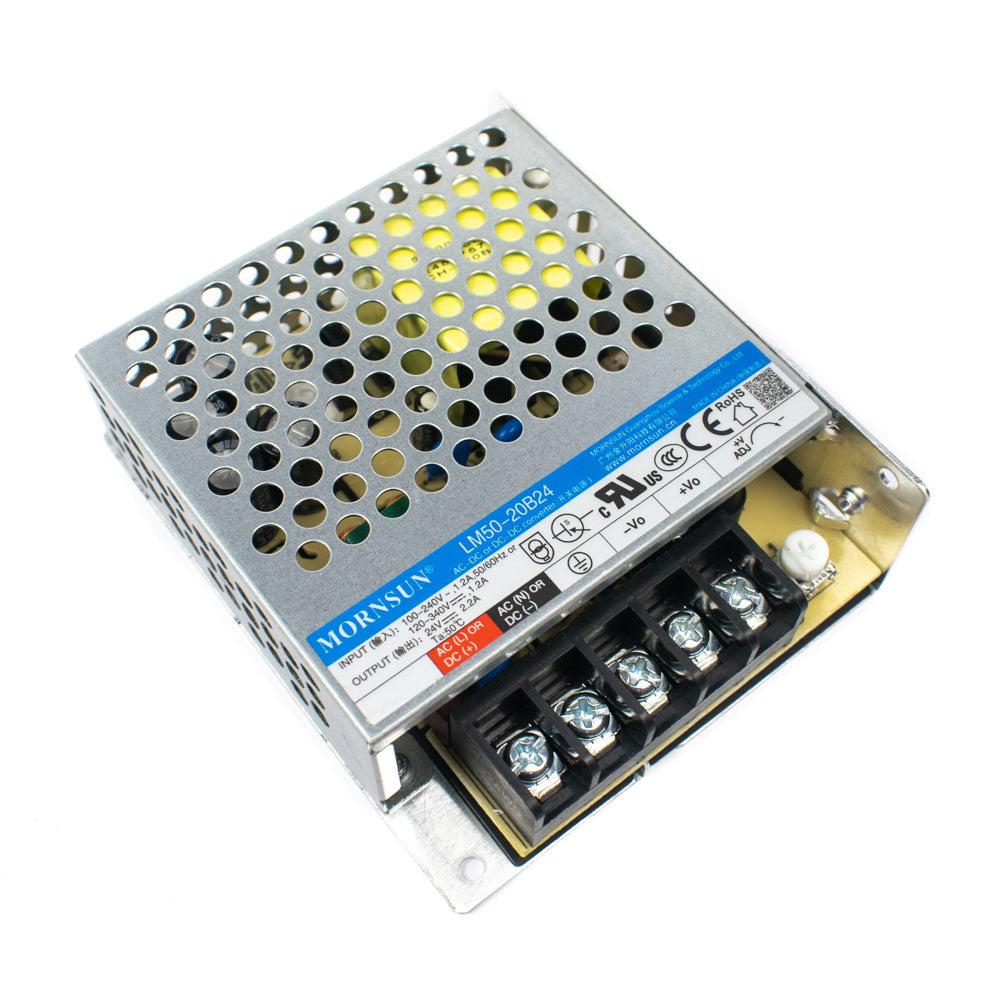

24V 2.2A Mornsun Power Supply (LM50-20B24)

Product Title: LM50-20Bxx Series 24V 2.2A Mornsun Power Supply

Product URL: https://www.electratraders.com/products/24v-2-2a-mornsun-power-supply-lm50-20b24

The LM50-20Bxx series is a unique enclosed AC-DC switching power supply from Mornsun. It stands out for its universal AC input and ability to accept DC input voltage, making it a cost-effective and versatile option. With low no-load power consumption, high efficiency, and high reliability, this power supply is suitable for a wide range of applications including industrial, LED, street light control, security, telecommunications, and smart home systems.

Features:

1. Universal 85 - 264VAC or 120 - 370VDC input voltage
2. Accepts AC or DC input (dual-use of same terminal)
3. Operating ambient temperature range: -30℃ to +70℃
4. Low standby power consumption, high efficiency
5. High I/O isolation test voltage up to 4000VAC
6. Low ripple & noise
7. Output short circuit, over-current, over-voltage protection
8. Over-voltage class 3rd (designed to meet EN61558)
9. Operating altitude up to 5000m

Specifications:

1. Brand: Mornsun
2. Model: LM50-20B24
3. Output Voltage: 24V
4. Max. Output Current: 2.2A
5. Power: 52.8W
6. Adjustable Voltage Range: 21.6-28.8V
7. Country of Origin: China
