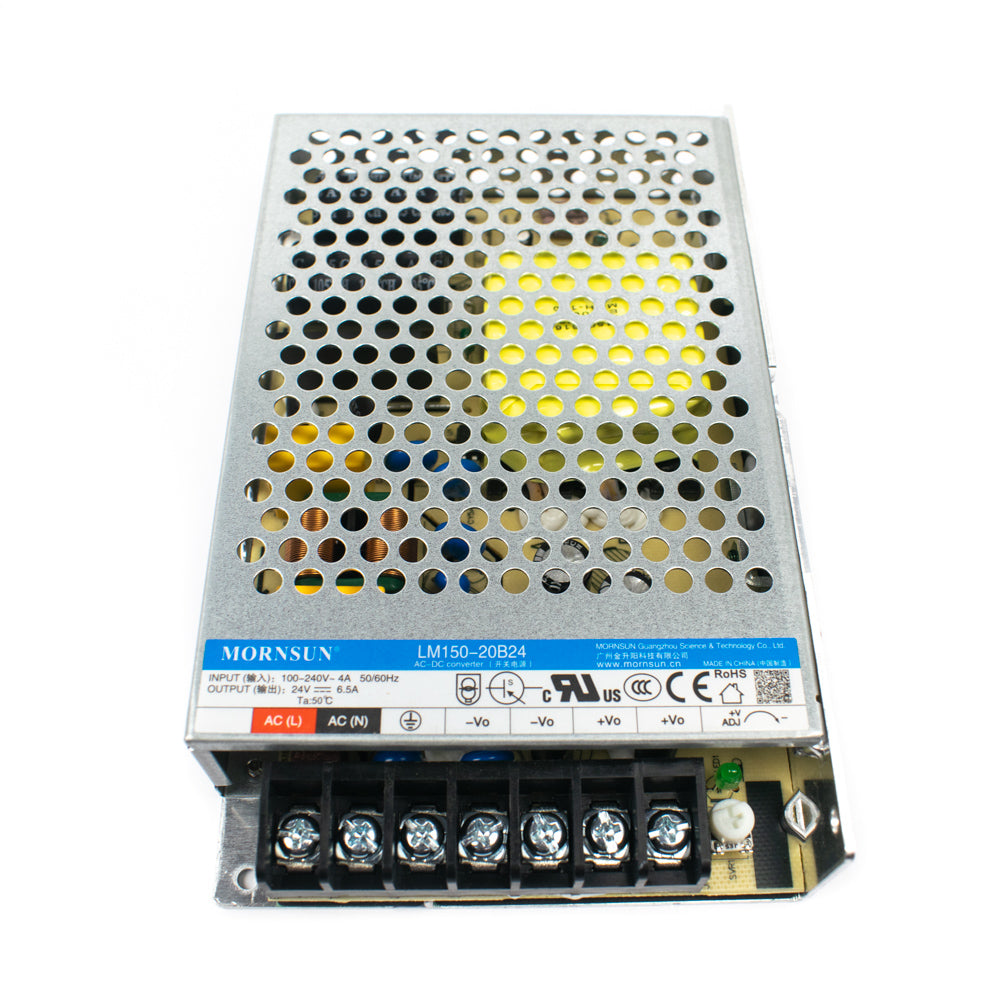

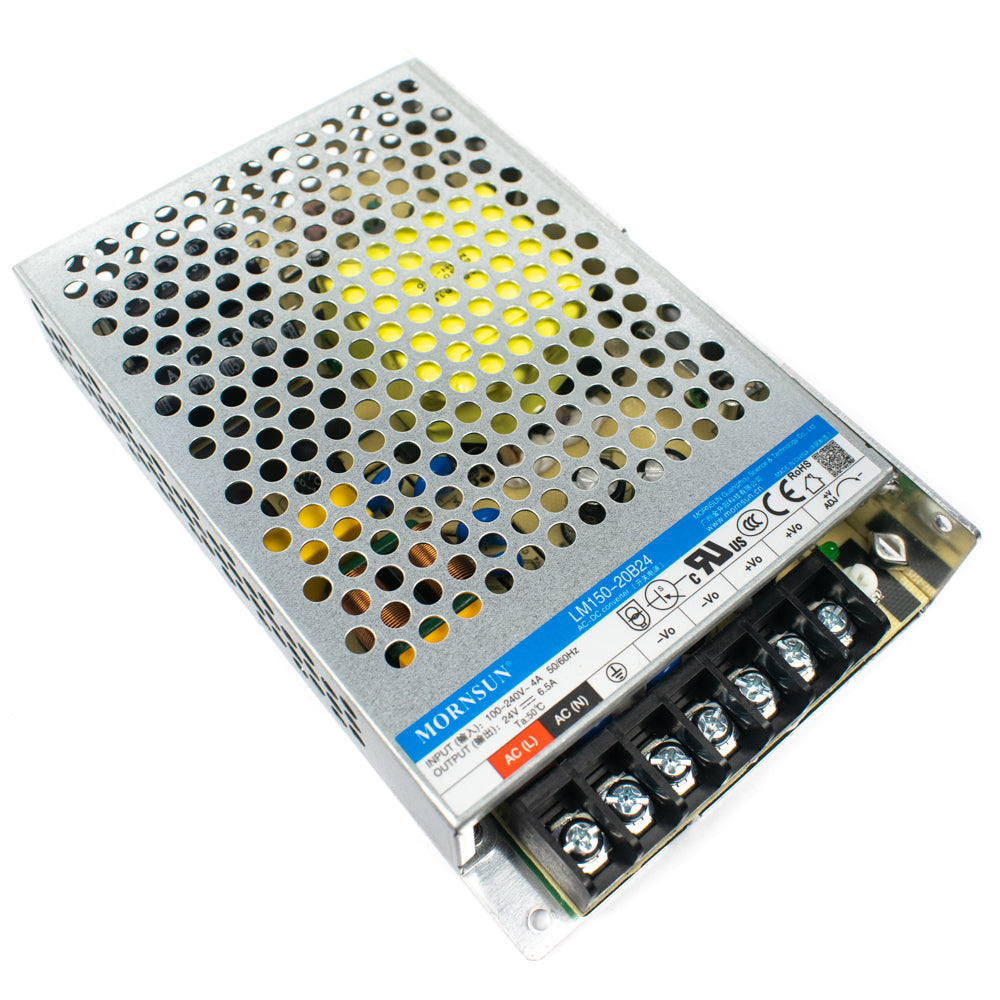

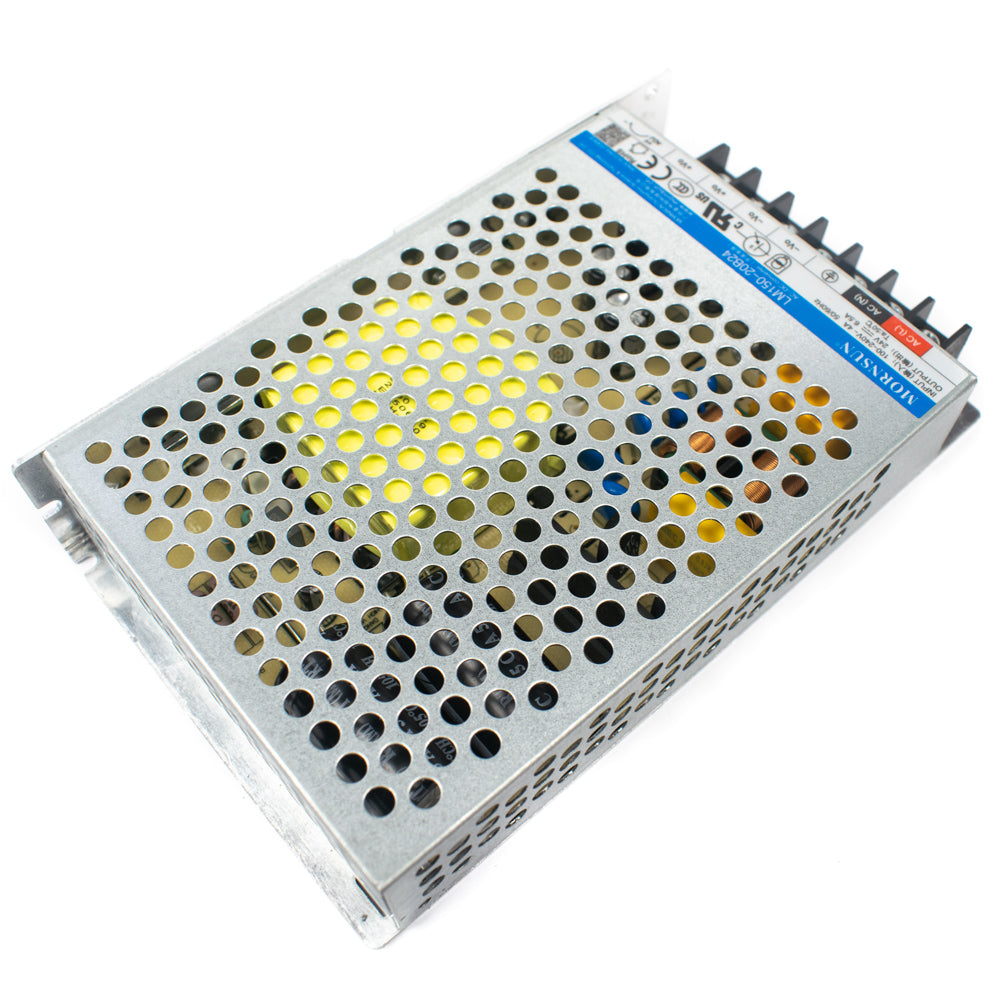

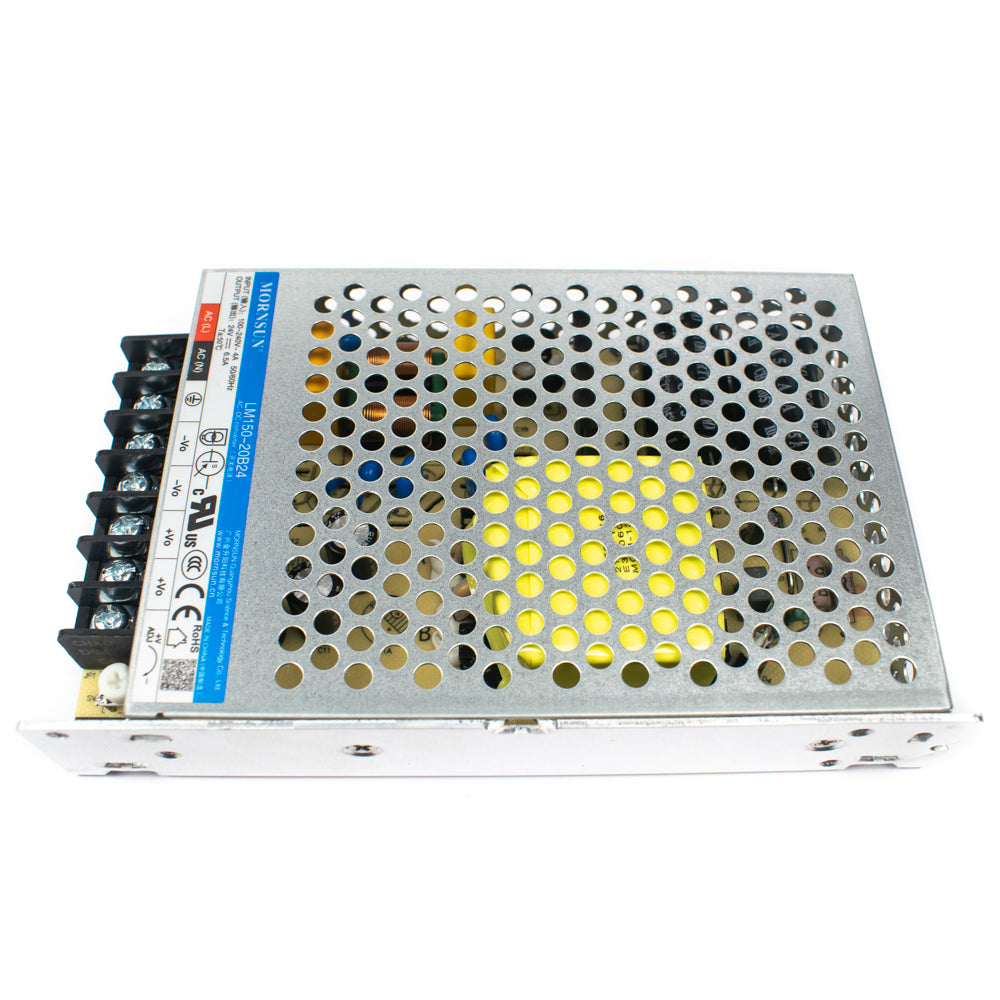

24V 6.5A Mornsun Power Supply (LM150-20B24)
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
LM150-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features universal AC input and at the same time accepts DC input voltage, is cost-effective, low no-load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/EN/UL62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
FEATURES
- Universal 85 - 264VAC or 120 - 370VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
Specifications
| Brand | Mornsun |
| Model | LM150-20B24 |
| Output Voltage | 12V DC |
| Max. Output Current | 6.5A |
| Power | 156W |
| Adjustable Voltage Range | 21.6-28.8V |
| Country of Origin | China |
