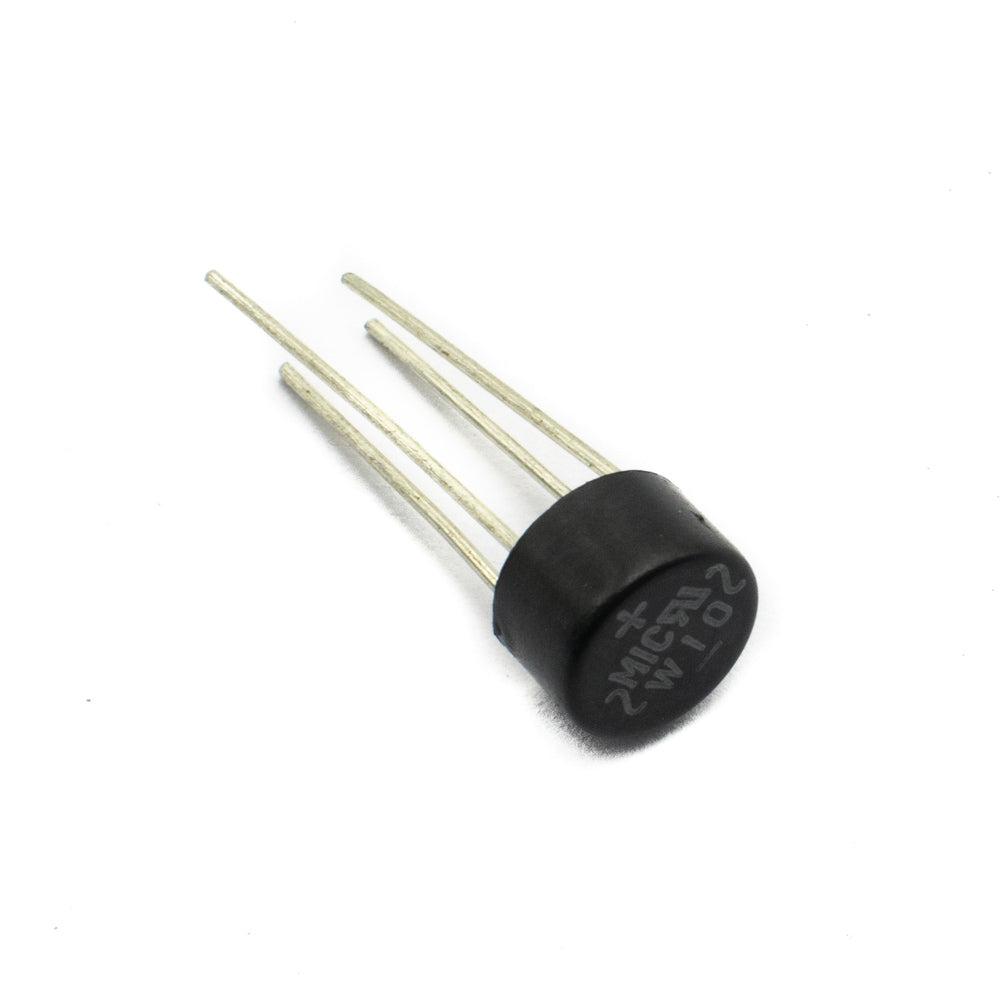

The W10 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 1.5A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop. It has high efficiency and a high surge current capability of 40A. If you are looking for a compact IC for rectification application this can be a good choice.
PINOUT
| Pin Number | Pin Name | Pin Description |
| 1 | Positive | Positive of Rectified Output |
| 2 | AC Input | AC Input |
| 3 | Negative | Negative of Rectified Output |
| 4 | AC Input | AC Input |
FEATURES
- UL Recognized File # E-96005
- Surge overload ratings to 30 amperes peak
- Ideal for printed circuit board
- Reliable low-cost construction technique results in inexpensive product
- High temperature soldering guaranteed: 250°C/10 seconds / 0.375" (9.5mm) lead length at 5 lbs., (2.3 kg) tension
Specifications
| Input Voltage | 50-1000V |
| DC Blocking Voltage per element | 500uA |
| Maximum RMS Bridge Input Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Maximum Average Forward Output Current | 1.5A |
| Operating Temperature Range: | -5 5°C to + 150 °C |
| Diameter | 9mm |
| Country of Origin | China |
