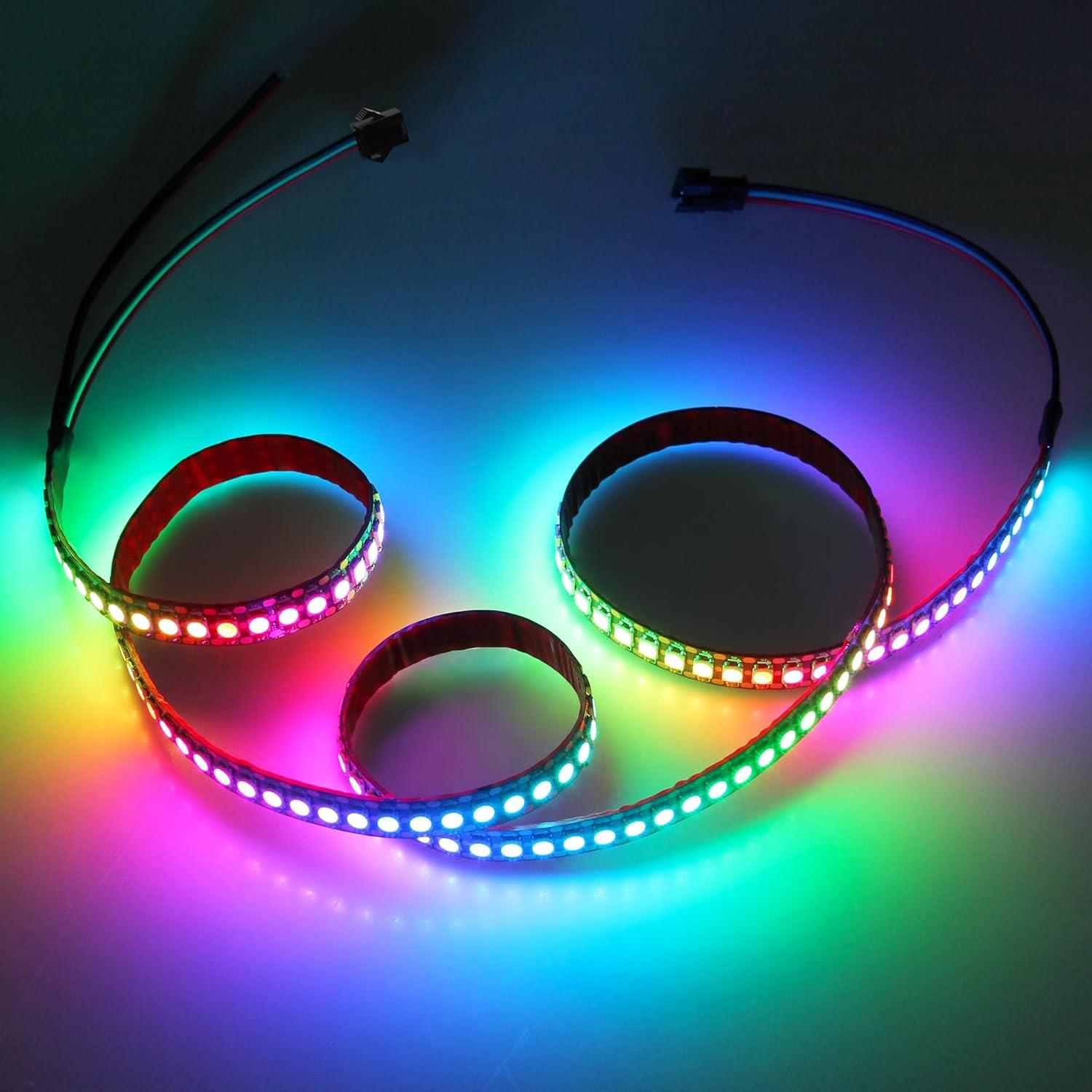

WS2812 RGB Addressable LED Pixel Strip Light 5V DC Programmable

Product Title: WS2812 RGB Addressable LED Pixel Strip Light

Product URL: https://www.electratraders.com/products/ws2812-rgb-addressable-led-pixel-strip-light-5v-dc-programmable

Description: The WS2812 RGB Addressable LED Pixel Strip Light is a unique and intelligent LED light source that integrates the control circuit and RGB chip into a single package of 5050 components. Its internal design includes an intelligent digital port data latch and signal reshaping amplification drive circuit, making it a dual-signal wires version with continuous transmission even if one pixel fails. The data transfer protocol uses a single NZR communication mode and supports lower frequency and inexpensive MCUs. With a refresh frequency of 2KHz and 256 levels of gray for each pixel, this light can display over 16 million colors and has a reset time of over 280µs, ensuring no wrong resets during interruptions.

Features: The WS2812 RGB Addressable LED Pixel Strip Light has a 5V DC power supply, reducing operating current and voltage drop for consistent lighting over long distances. Its built-in signal reshaping circuit ensures no distortion of the signal waveform, and the serial cascade interface only requires one signal line for data receiving and decoding. With a transmission speed of 800Kbps and the ability to cascade up to 1024 pixels at a refresh rate of 30fps, this light offers good color consistency and reliability at a high cost-effective price.

Applications: This light is suitable for a variety of applications, including guardrail tube series, point light display series, flexible/rigid strips series, and module series. It can also be used for lighting stage costumes, innovative gadgets, or any other electronic products.

Specifications:

1. Model: DC 5V IP20-30LED-B-RGB-2812
2. Length: 1 Meter
3. Working Voltage: DC 5V
4. Maximum Power: 60W
5. Waterproof: No
6. Data Transfer Protocol: Single NZR Communication Mode
7. Data Transmission Speed: 800Kbps
8. Gray Level for Each Pixel: 256
