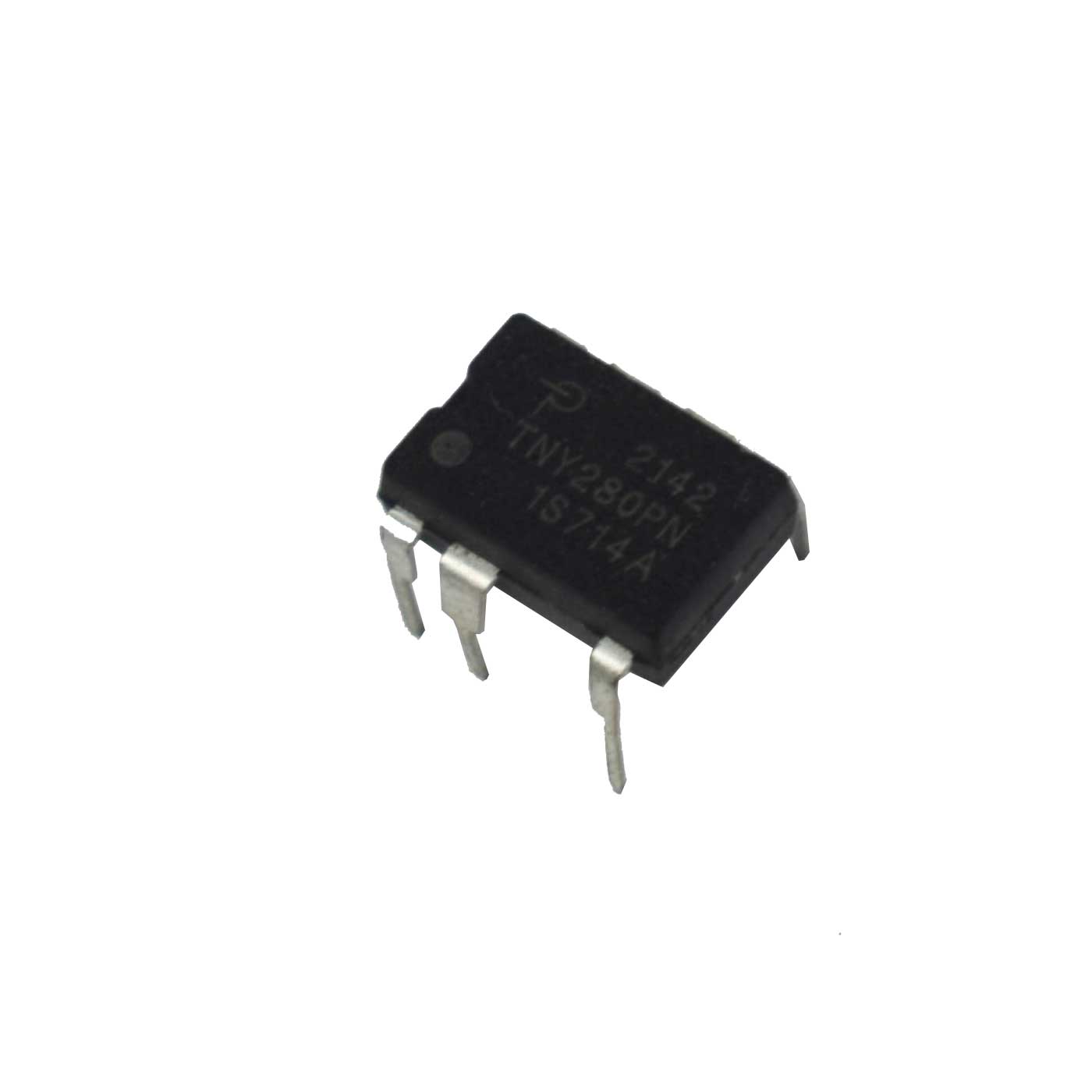

TNY280PN AC/DC Off-Line Switcher Converter IC PDIP-8 Package (Pack of 100)

TNY280PN Power Integrations AC/DC Off-Line Switcher Converter IC PDIP-8 Package

The TNY280PN AC/DC Off-Line Switcher Converter is a unique and energy-efficient solution for a wide range of power needs. Its TinySwitchTM-III design offers increased flexibility and a wider power range, making it suitable for a variety of applications. The IC package includes a 700V power MOSFET, an oscillator, a high-voltage switched current source, a user-selectable current limit, and thermal shutdown circuitry.

This IC family uses an ON/OFF control scheme, providing a design-flexible solution with a low system cost and high power capability. It is ideal for chargers/adapters for cell/cordless phones, PDAs, digital cameras, MP3/portable audio, shavers, PC standby, and other auxiliary supplies. It is also suitable for DVD/PVR and other low power set-top decoders, appliances, industrial systems, and metering.

The ON/OFF control ensures constant efficiency, even at low loads, making it perfect for meeting mandatory CEC regulations and 1W PC standby requirements. The TNY280PN model is a through-hole package with 7 pins and an output voltage of 12V, output current of 1A, and output power of 28.5W. Its switching frequency is 132KHz, and it is made in China.
