SF28 Diode 2A 1000V Super Fast Rectifier Diode (Pack of 10)
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302

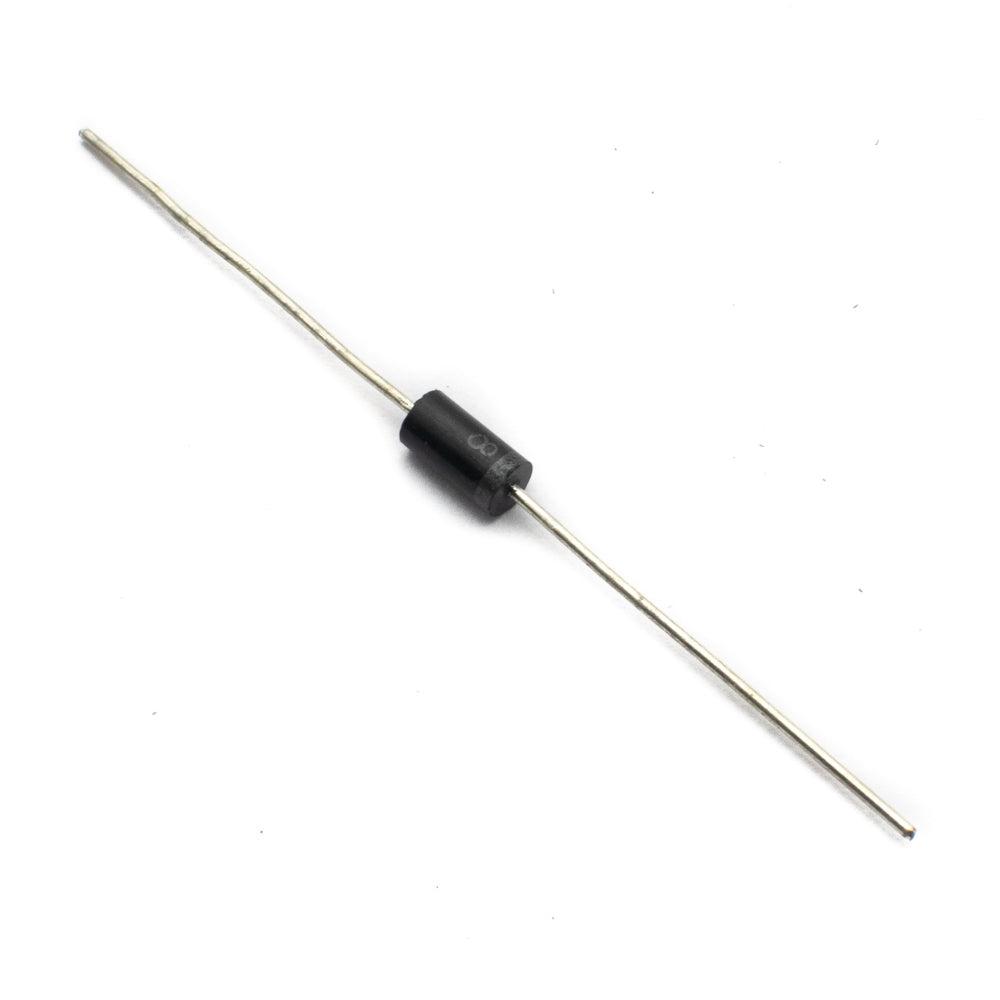

The diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. For SF28 Diode, the maximum current carrying capacity is 2A it withstands peaks up to 75A. Hence we can use this in circuits that are designed for less than 2A. The reverse current is 20uA which is negligible.
Features
- High current capability
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Superfast recovery time
- Pb / RoHS Free
Specification
| Forward Voltage | 4V (2A) |
| Peak Reverse Voltage | 800V |
| Maximum RMS Voltage | 560V |
| Average Forward Current | 2A |
| Non-Repetitive Peak Forward Surge Current | 75A |
| Operating Temperature Range | -65 to + 150°C |
| Low Reverse Leakage Current | 20µA |
| Dimensions | 6.2x3.2mm |
| Country of Origin | China |
