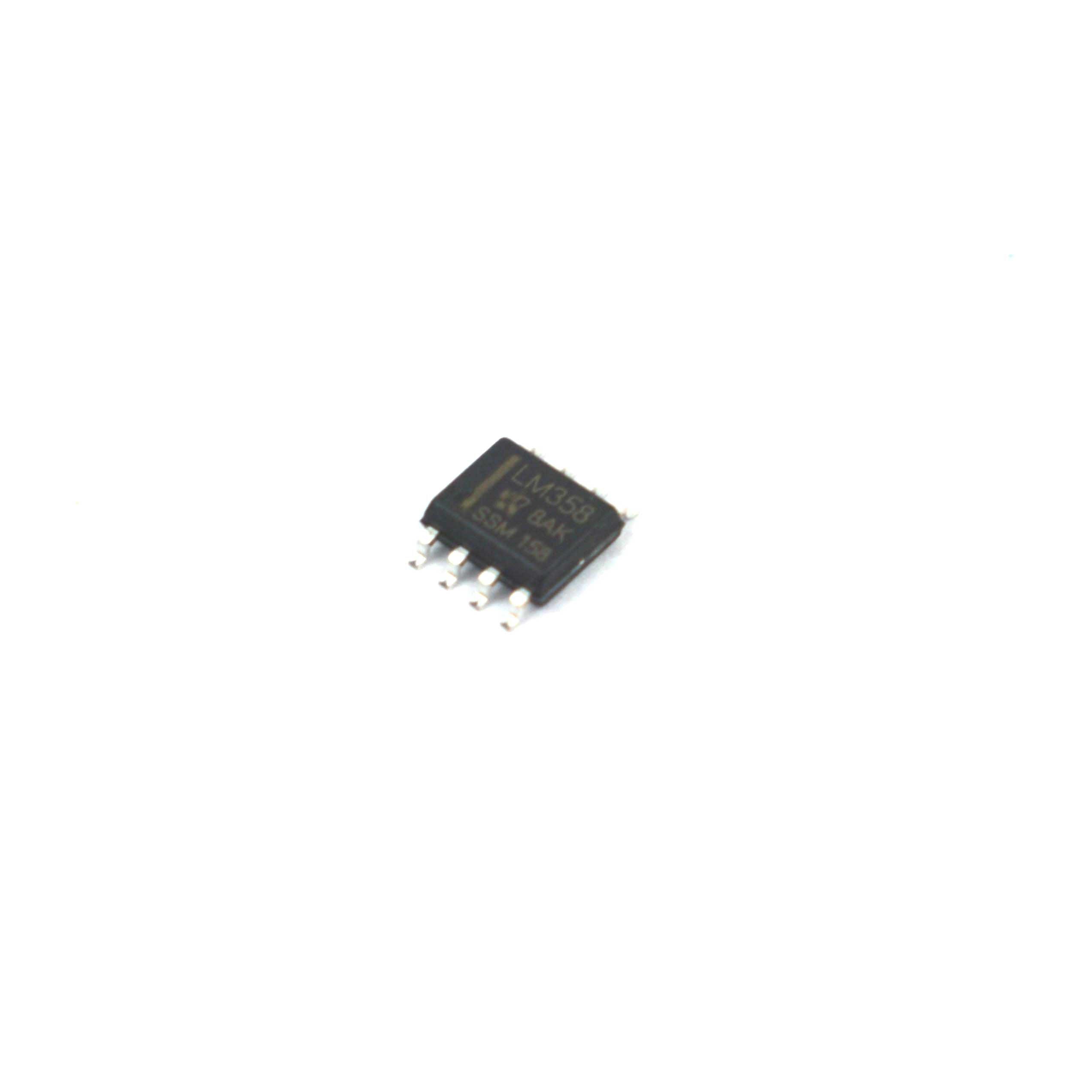

LM358 - Single Supply Dual Op-Amp IC SMD (Pack of 100)
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
The LM358 is a single-supply dual op-amp IC that integrates two op-amps that are powered by a single power supply. It is one-half of the LM324 Quad op-amp, which contains four op-amps with a shared power supply. These dual operational amplifiers function with low power drain, a common mode input voltage range extending to ground/VEE, and single or split supply operation, by using the circuit designs perfected for Quad Operational Amplifiers. The differential input voltage range can be the same as the power supply voltage range. The operating temperature ranges from 0 C to 70 C at ambient, with a maximum junction temperature of 150 C. The LM358 can be used as a transducer amplifier, a DC gain block, and so on.
Features
- The true differential input stage
- Low input bias current
- Wide bandwidth (unity gain): 1 MHz (temperature compensated)
- Single Supply Operation: 3.0 V to 32 V
- Input common-mode voltage range includes ground
- Differential input voltage range equal to the power supply voltage
Specification
| Model/Name | LM358 |
| Supply Voltage | 32V |
| Input Voltage | −0.3V to +32V |
| Operating Temperature Range | 0˚C to +70˚C |
| Lead Temperature DIP | 260˚C |
| Mounting Type | SMD |
| Differential Input Voltage | 32V |
| Storage Temperature Range | -65˚C to +125˚C |
| Country of Origin | China |
