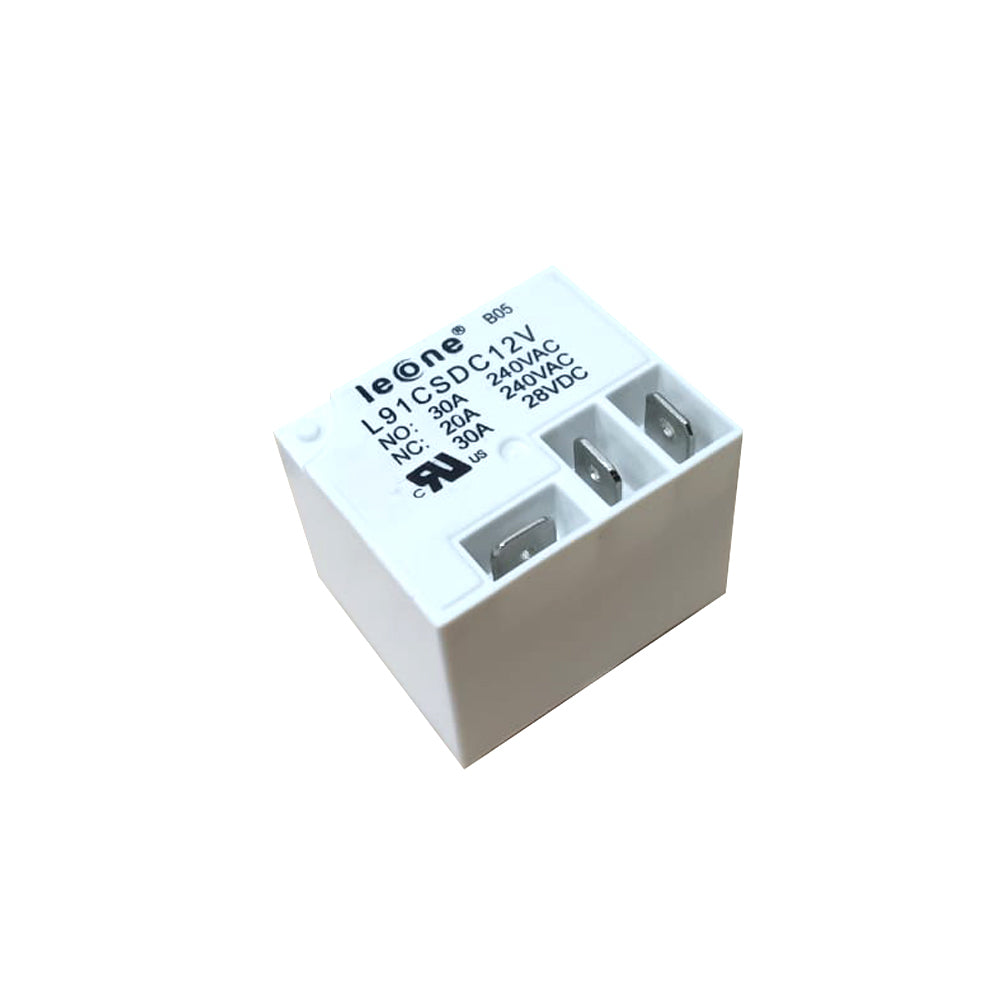

LEONE 12V DC 30A Box Type Relay L91CSDC12V (Pack of 10)
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
It's a Box Type general-purpose Relay 12V DC 30A. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
Applications:
- Relays are electrically operated switches
- It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
- Power relays open or close a circuit by using an electromagnetic coil for seamless power flow.
- The operating voltage of a relay is generally in DC.
Specification
| Brand Name | LEONE |
| Model | L91CSDC12V |
| Type | Box Type Relay |
| Operating Voltage | 12V DC |
| NO (Normal Open) Current | 240V AC/ 30A |
| NC (Normal Close) Current | 240V AC/ 20A |
| DC Coil Voltage | 28V DC/ 30A |
| Mounting Type | Through Hole |
| Size (L,W,H) | 32 x 27 x 26 mm |
| No. of Terminals | 8 Pin |
| Quantity | 10 |
| Country of Origin | China |
