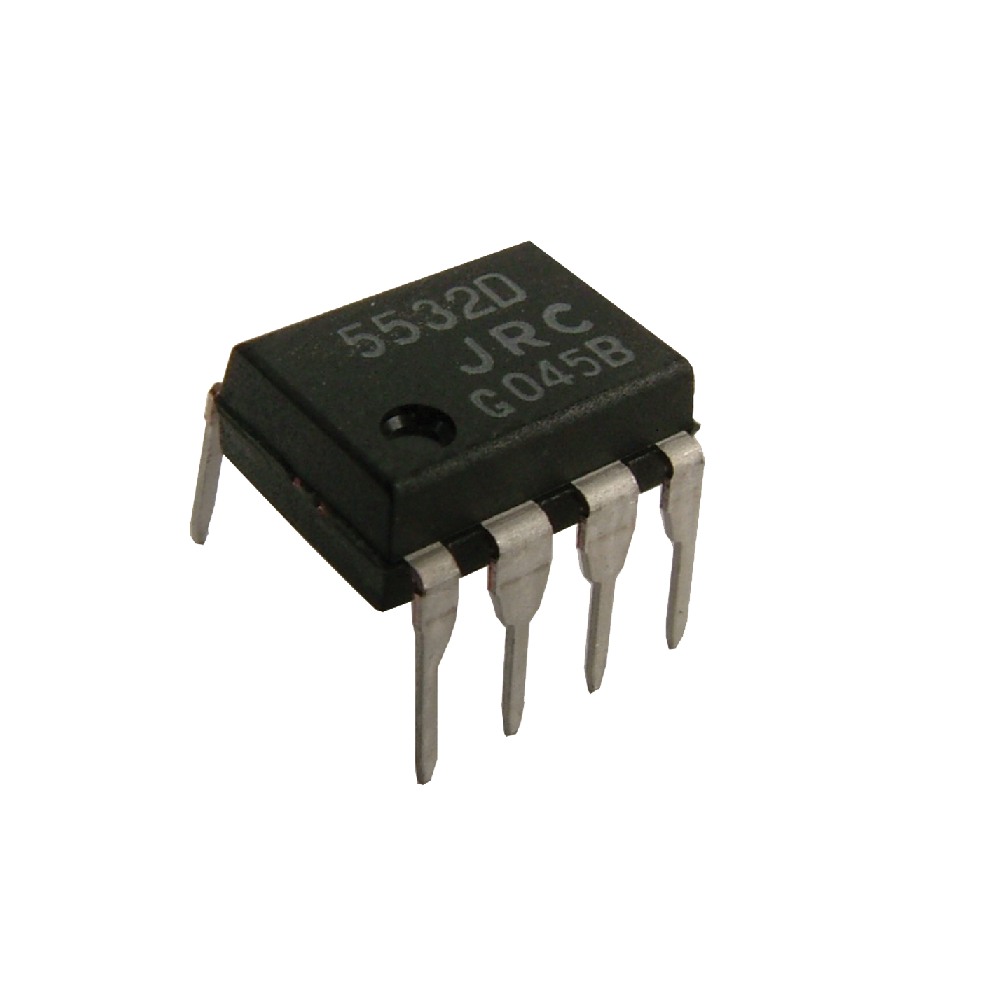

JRC NJM5532 High Performance Low Noise Dual Operational Amplifier(Pack of 30)
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
The NJM5532 is a high performance dual low noise operational amplifier. Compared to the standard dual operational amplifiers, such as the NJM1458, it shows better noise performance, improved output drive capability, and considerably higher small-signal and power bandwidths. This makes the device especially suitable for application in high quality and professional audio equipment, instrumentation, control circuits, and telephone channel amplifiers. The op-amp is internally compensated for gains equal to one If very low noise is of prime importance.
Features
- Operating Voltage: ±3V~±20V DC
- Small Signal Bandwidth: 10 MHz
- Output Drive Capability: 600Ω 10Vrms typ
- Input Noise Voltage: 5nV/√Hz typ
- Power Bandwidth: 140kHz
- Slew Rate: 8V/µs
- Package Outline: DIP 8
- Bipolar Technology
Specifications
| Model | NJM5532 |
| Brand | JRC |
| Operating Voltage | ±3V to ±20V DC |
| Input Offset Voltage | 4mV |
| Input Offset Current | 150nA |
| Operating Current | 16mA |
| Gain | 67db |
| Slew Rate | 8V/µs |
| Country of Origin | China |
