Hilight 24V 15A SMPS Power Supply with Inbuild Automatic Fan Control Circuit

Product Title: Hilight 24V 15A SMPS Power Supply with Inbuild Automatic Fan Control Circuit

Product URL: https://www.electratraders.com/products/hilight-24v-15a-smps-power-supply-with-inbuild-automatic-fan-control-circuit

Description:

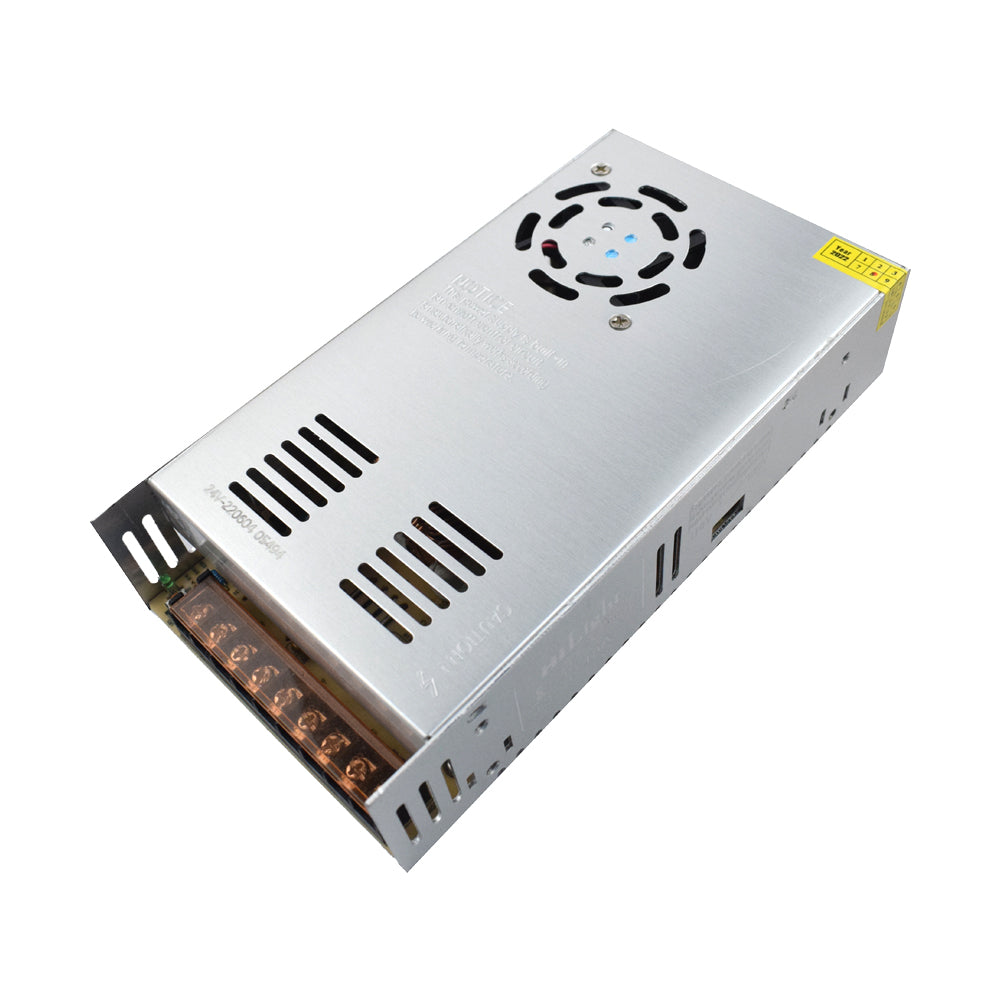

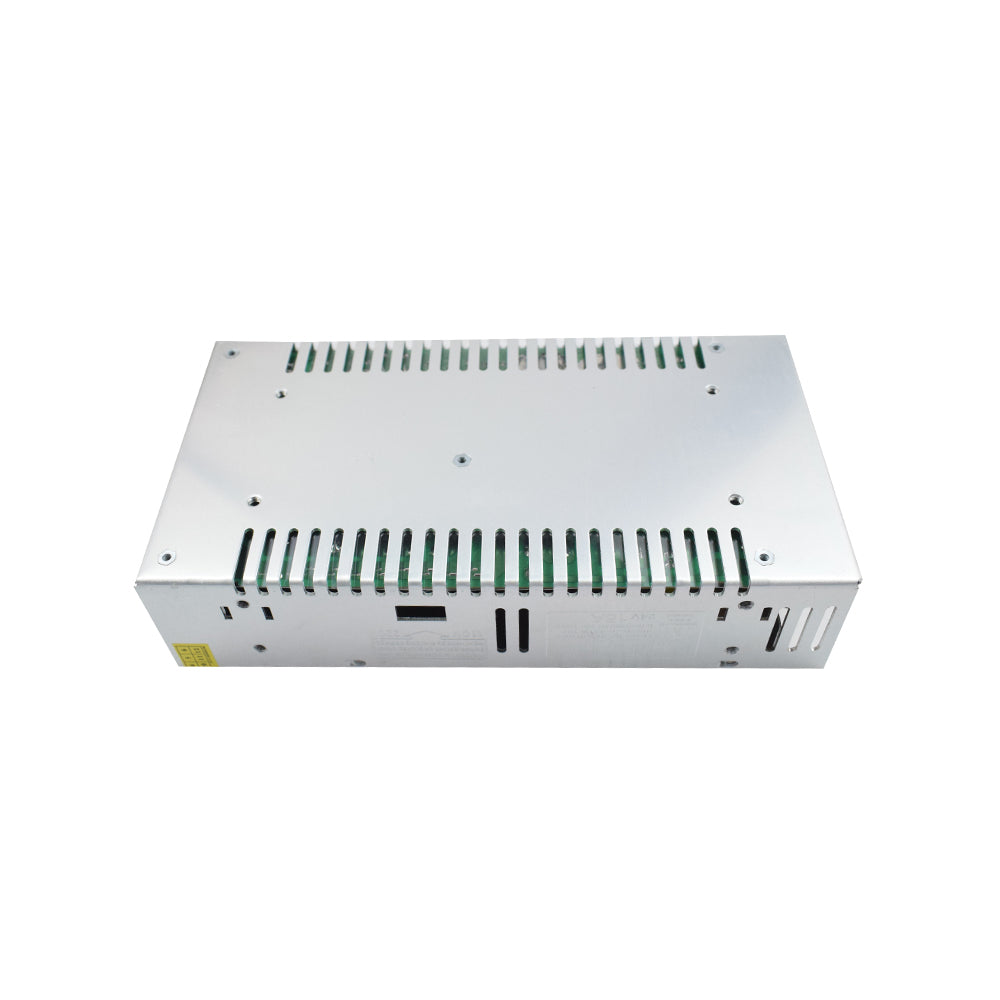

Introducing the Hilight 24V 15A LED Drive Power Supply with Inbuild Automatic Fan Control Circuit. This unique power supply features 3 input terminals - one line, one neutral, and one ground - and 6 output terminals. What sets this power supply apart is its built-in fan On/Off control circuit, which automatically adjusts the fan according to the working temperature. Enclosed in a metal core, this power supply is also adjustable, providing better regulation and converting 220V alternating voltage into 24V DC. It is commonly used in various applications such as solar panels, LED luminous characters, light bars, and outdoor engineering lighting. Please note that the input voltage (110V/220V) must be selected by switch before powering on to avoid damage.

Features:

1. Protects the device from internal or external short circuit currents
2. Protects the power supply from load faults such as short circuits and open circuits
3. Cooled by forced air using a fan
4. Corrects phase difference between voltage and current for optimal power output

Specifications:

1. Model: HPMN150R
2. Brand: HiLight
3. Type: LED Power Supply

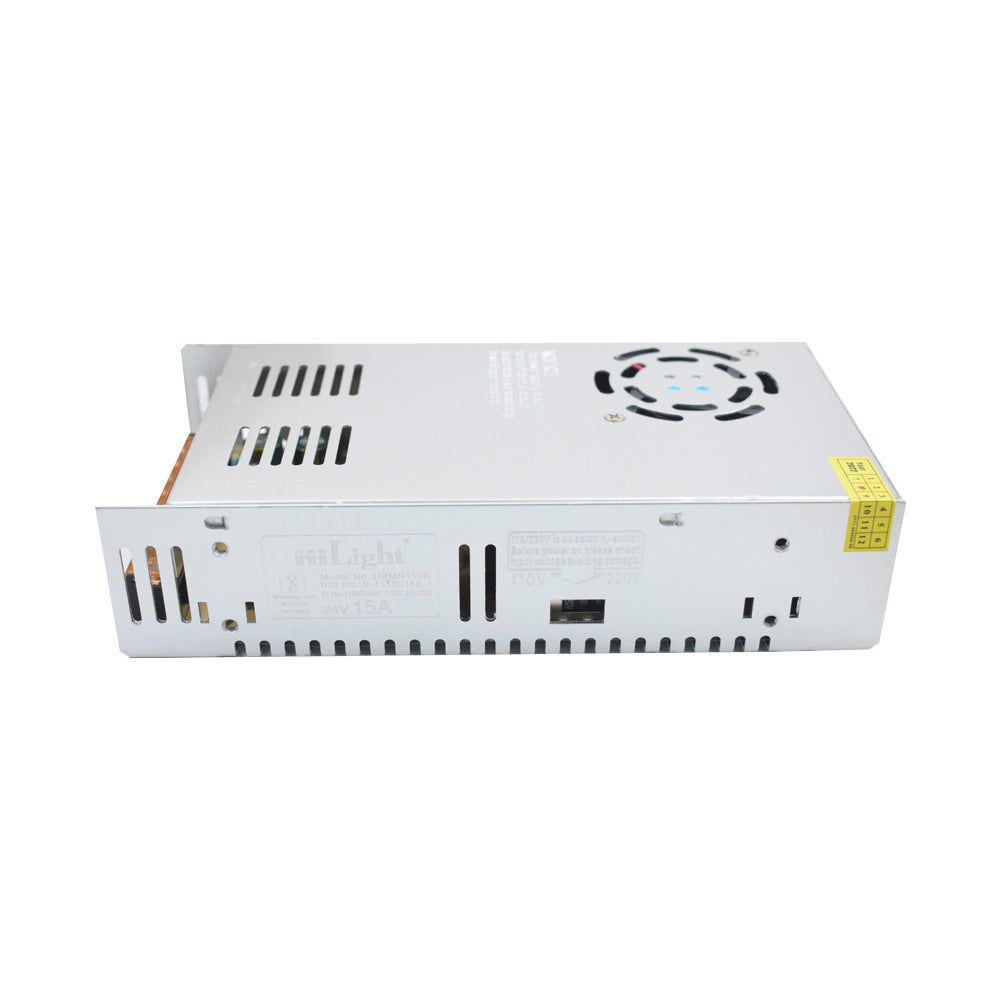

4. Input Voltage: 220V/110V AC (with Selector Switch)
5. Output Voltage: 24V DC
6. Current: 15A
7. No. of Terminals: 08
8. Dimension: 215 * 113 * 50mm
9. No. of Input Terminals: 03
10. No. of Output Terminals: 06
11. Country of Origin: China
