Hilight 12-24V 30A RGB RF LED Controller
Hilight 12-24V 30A RGB RF LED Controller
Couldn't load pickup availability
DESCRIPTION:

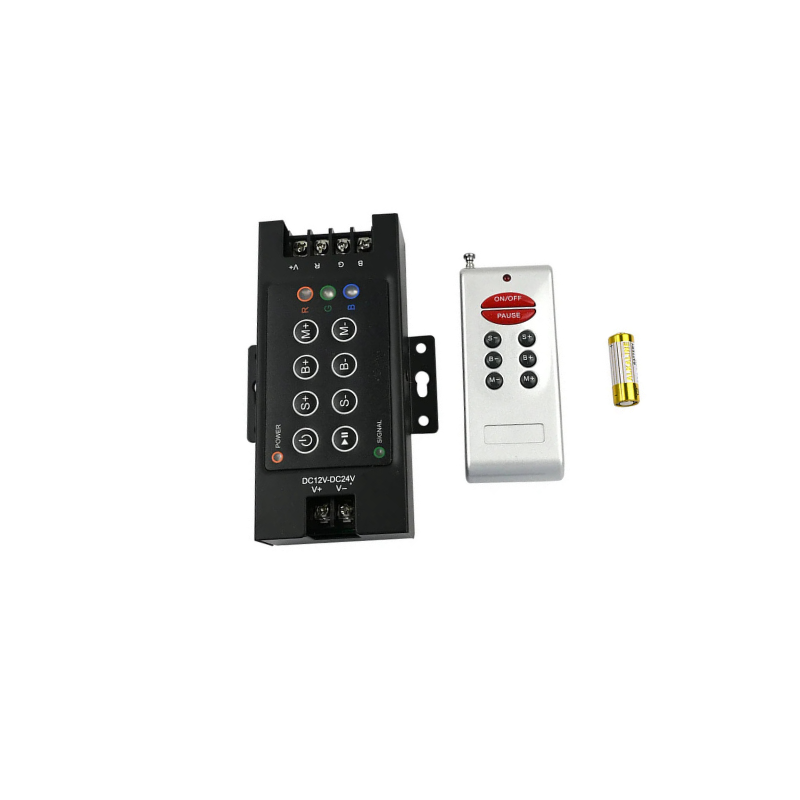

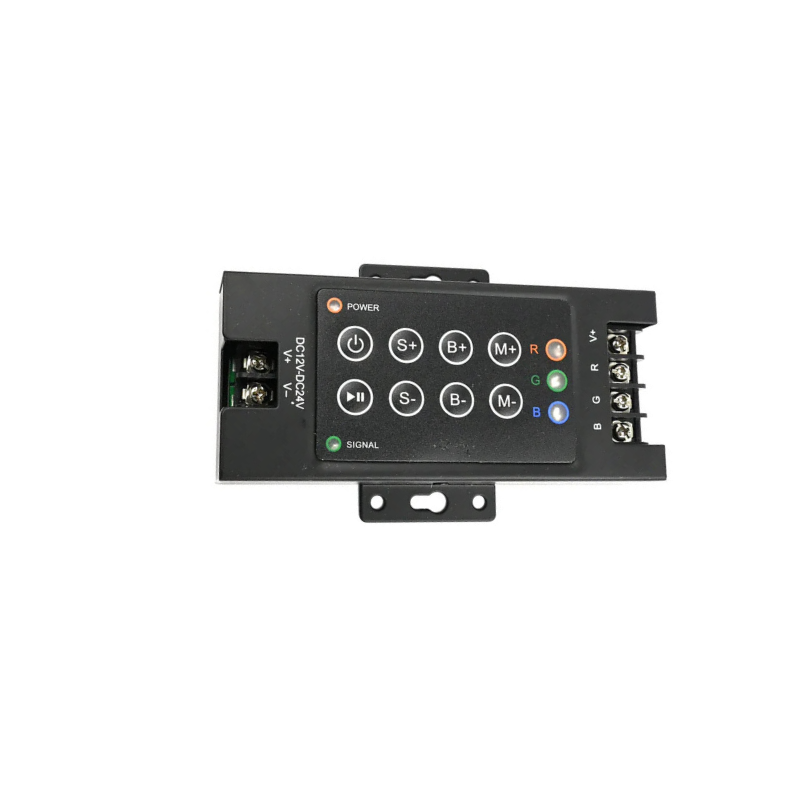

It is an RGB RF LED controller with 12-24V and 30A.An RGB RF LED controller is a device that uses radio frequency (RF) impulses to control the colour and brightness of RGB (Red, Green, Blue) LED lights. With the help of the remote control that transmits RF signals to the controller, you can adjust the LED lights' colour and brightness remotely. The device's versatility is further enhanced by the ability to configure the controller to produce various lighting effects, including fading, flashing, and strobing. Four output terminals and two input terminals are present. The controller has buttons for signal, brightness, and mode. It is utilised in stage lighting, outdoor lighting, commercial lighting, art installations, and residential lighting.
Feature:
- The equipment is controlled wirelessly.
- It comes in a variety of colours, including blue, green, and red.
- The LED lights' brightness can be changed.
- Simple installation
- LED lights use less electricity and are more energy-efficient.
- The controller's signal, brightness, and mode buttons.
Application:
- illumination in the house.
- lights for businesses.
- illumination outside.
- illumination for the stage.
- installations of art.
Specification:
Brand | HiLight |
Model | 12-24V 30A RGB RF LED Controller |
Type | RGB RF LED Controller |
Voltage | 12-24V |
Current | 30A |
Working temperature | 20-60 Degree |
Connection mode | Common anode |
No. of input terminal | 2 |
No. of output terminal | 4 |
Color | Red, Green and Blue |
Dimension of controller | 121.2x75.2x25.9mm |
Dimension of remote | 91.1x36.5x16.6mm |
Country of Origin | China |
