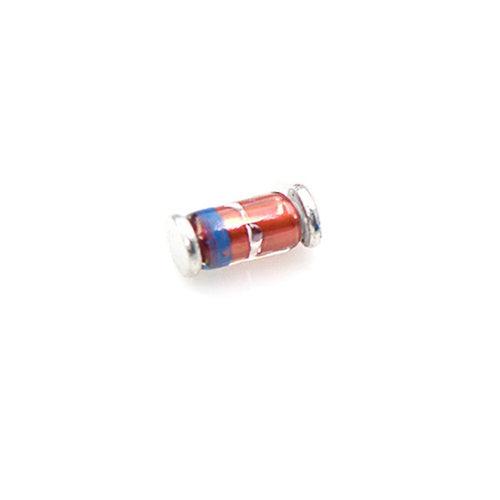

BVZ55C4V7 4.4V - 5V Voltage Regulator Diode (Pack of 2500)
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
Voltage regulator diodes utilize the reverse characteristics of a PN junction. When raising reverse voltage of PN junction diodes, high current starts flowing at a certain voltage, and constant voltage can be obtained. (This phenomenon is called breakdown and this voltage is called breakdown voltage. BVZ55 series are low-power voltage regulator diodes which come in small hermetically sealed glass SOD80 Surface-Mounted Device (SMD) package. The diodes are offered in tolerance ranges of about 5% (BZV55-C) . There are 37 different varieties in the series, with nominal working voltages ranging from 2.4 V to 75 V. This kind of voltage regulator is suitable for general regulating purposes.
Features :-
- Total power dissipation: 500mW
- Low differential resistance
- Two tolerance series: 2% and 5%
Specifications
| Parameter | Values |
| Model | BZV55C4V7 |
| Supply Voltage | 4.4 V - 5 V |
| Differential resistance | 425 W - 500 W at Iz=1 mA |
| 50 W - 80 W at Iz=5 mA | |
| Temperature Coefficient | -3.5 mV/K – 0.2 mV/K |
| Diode Capacitance | 300 pF |
| Non-repetitive peak reverse current | 6.0 A |
| Junction Temperature | -60°C - 200°C |
| Storage Temperature | -60°C - 200°C |
| Total Power Dissipation | 400mW - 500mW |
| Forward Current | 250 mA |
| Non-Repetitive Peak Reverse Power Dissipation | 40 W |
| Package | SOD80 |
| Quantity | 2500 |
| Country of Origin | China |
