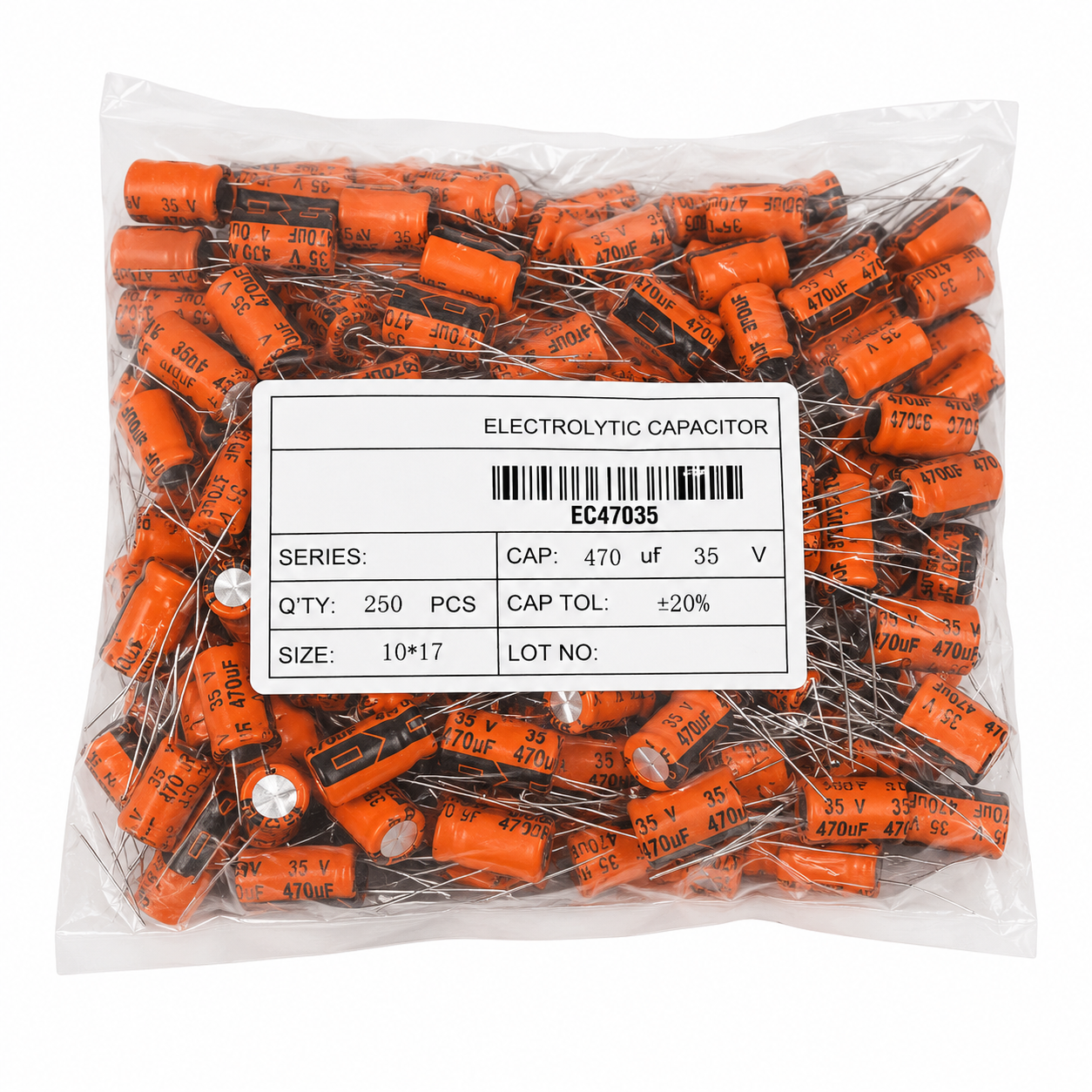

470µF 35V Electrolytic Capacitor (Pack of 250)

Product Title: 470µF 35V Electrolytic Capacitor

This unique product is a 470µF 35V Electrolytic Capacitor, designed with high purity Etched and Formed Aluminium foil and an aluminium oxide dielectric barrier. The anode and cathode foils are concentrically wound with a layer of condenser grade paper in between, and after impregnation with electrolyte, the wound element is housed in an Aluminium can and hermetically sealed with a rubber bung. This results in a highly efficient and compact Aluminium electrolytic capacitor.

The most remarkable feature of this product is its high capacitance ratio to dimensions, making it stand out from other capacitors. This is achieved through the use of a microscopically thin dielectric layer, which allows for a large capacitance per unit area. With a capacitance value of 470µF and a voltage rating of 35V, this electrolytic capacitor is perfect for a variety of electronic applications.

Specifications:

1. Capacitor Value: 470µF
2. Voltage: 35V
3. Type: Electrolytic Capacitor
4. Size: 10x17mm
5. Operating Temperature: -40°C to 85°C
6. Tolerance: ±20%
7. Mounting Type: Through Hole
8. Make: BMC
9. Component Quantity: 250
10. Country of Origin: China
