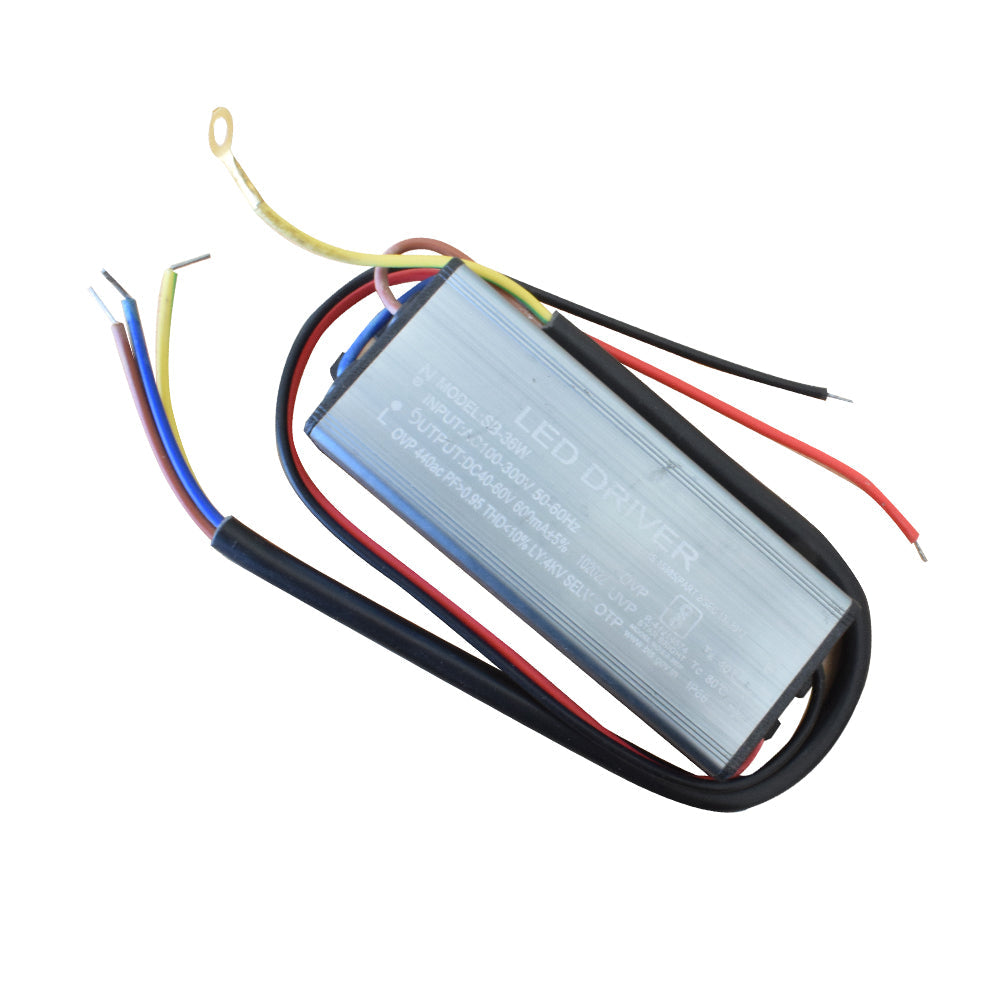

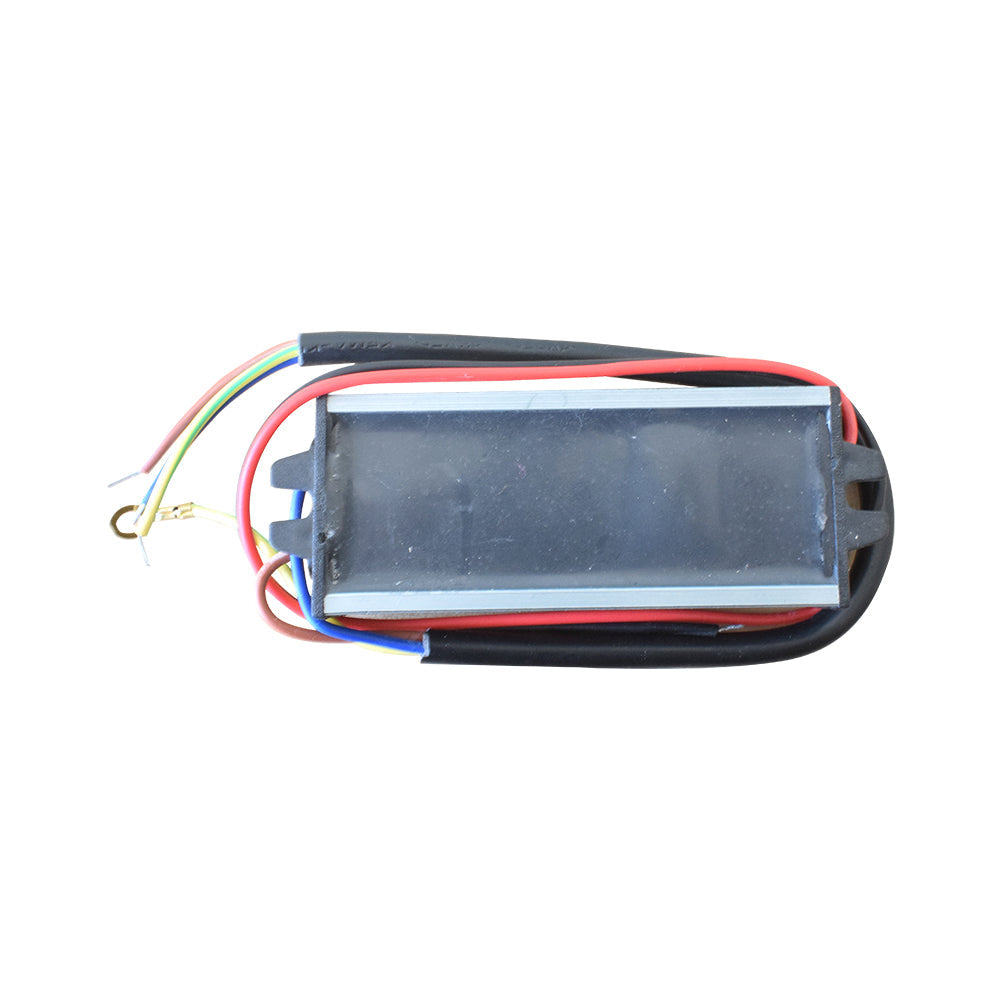

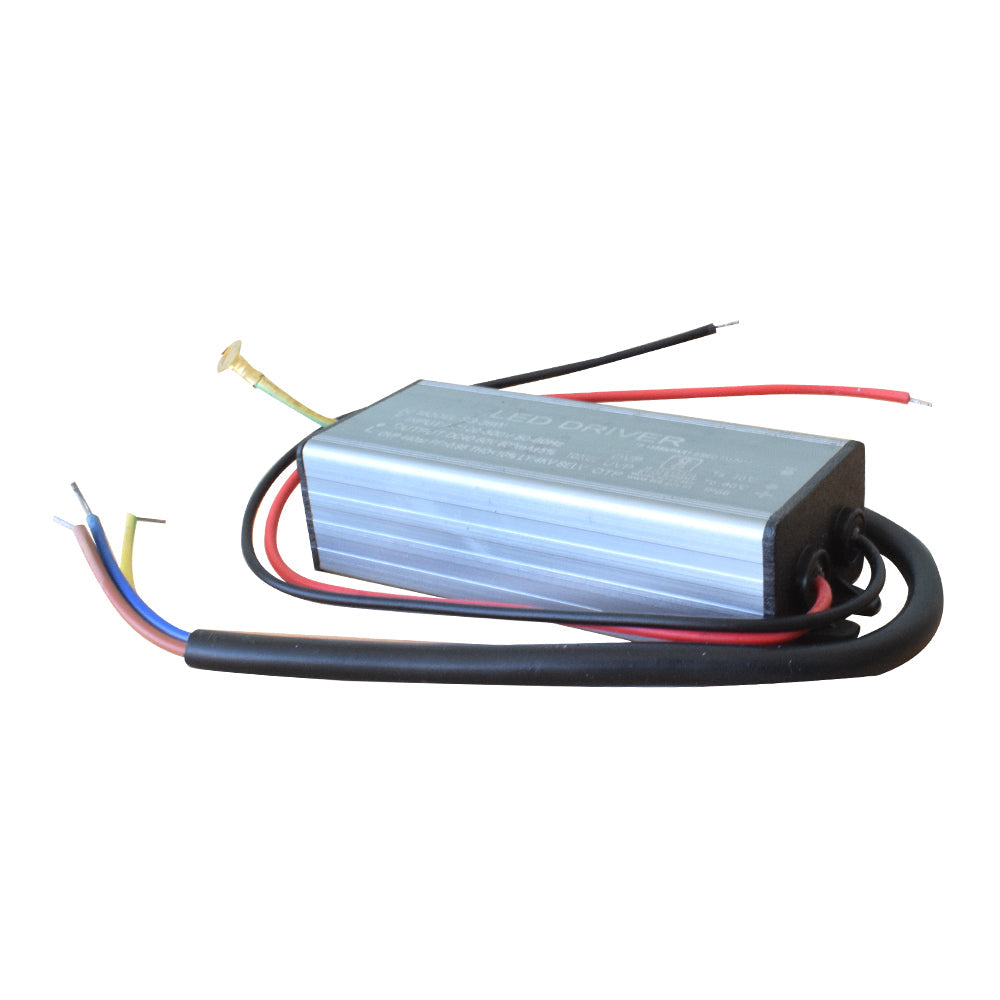

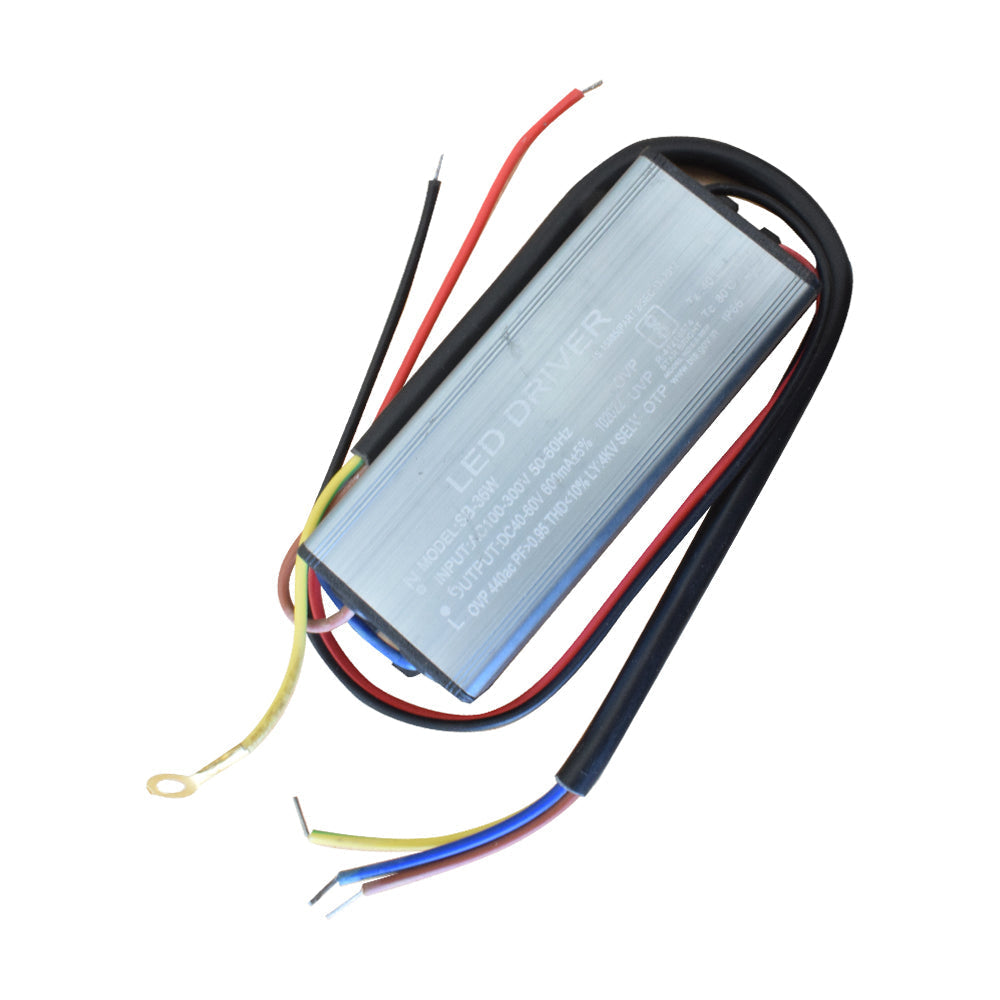

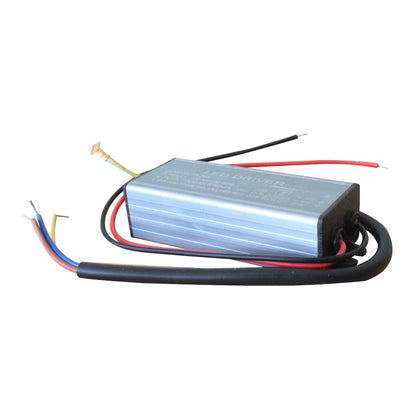

36W 40-60V 600mA LED Driver Module
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
LED Drivers serve as an interface between the power supply (line) and the LED (load), converting incoming 50 Hz or 60 Hz AC line power at voltages between 100-300V Volts to the regulated DC 600mA output current. . Within a set design range, an LED driver circuit should be immune to voltage spikes and other AC line noise. It can filter out harmonics in the output current to keep them from impairing the LED light source's output quality.
Features:
- Its input voltage is 100-305V
- Its frequency is 50-60Hz
- Its output current is 600mA
- It has four wire two wires are for input
- And the other two wires are for output
Specification:
| Model | R-41214574 |
| Type | LED Driver Module |
| Connection Point | N,L and -,+ |
| Input Voltage | 100-305V |
| Output Current | 600mA |
| Power | 36W |
| Dimensions | 92mmx33mmx21mm |
| Output Voltage | 40-60V |
| Country of Origin | China |
