24V 200W Meanwell SMPS (LRS-200-24)

Product Title: LRS-200-24 24V 200W Meanwell SMPS

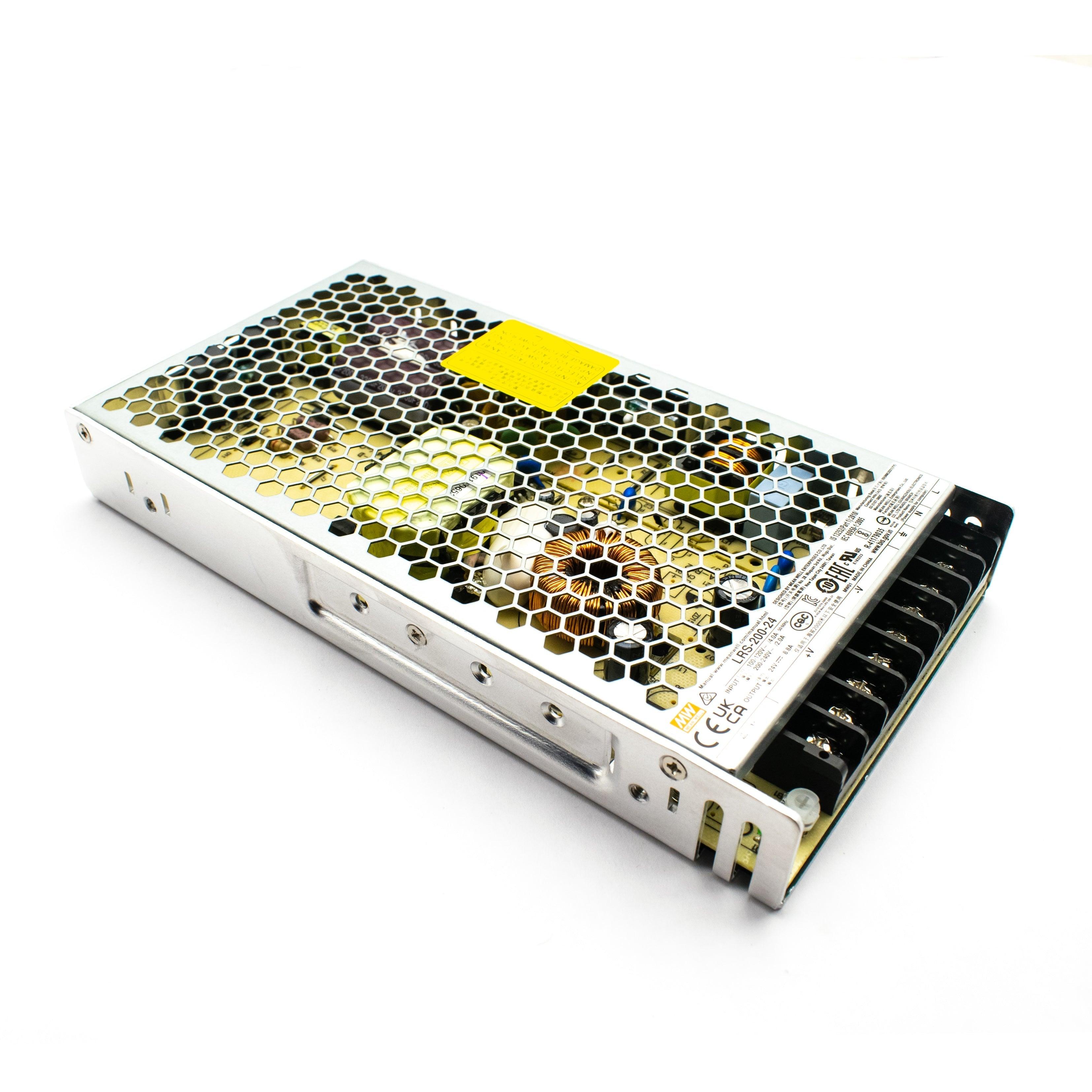

LRS-200-24 is a 211W 24V 8.8A single-output enclosed type power supply with 30mm of low profile design. It supports input power of 100-120V AC @4A, 200-240V AC @2.0A and provides a 24V output with a maximum load current of 8.8A. In addition to the high efficiency of up to 90%, the design of the metallic case enhances the heat dissipation of LRS-200-24 that operates from -25°C to 70°C under air convection without a fan. Delivering an extremely low no-load power consumption (less than 0.75W), allows the end system to easily meet the worldwide energy requirement.

Meanwell`s LRS-200-24 has complete protection functions and 5G anti-vibration capability; it complies with the international safety regulations such as UL 60950-1. Meanwell`s LRS-200-24 is a high-quality Industrial Grade SMPS. The LRS200-24 SMPS is a 200 watt SMPS that outputs 24 volts. Meanwell`s LRS-200 -24 switching power supply has a mesh casing and is simple to install.

Features:

1. AC input range selectable by switch
2. Withstand 300V AC surge input for 5 second
3. Protections: Short Circuit / Overload / Over Voltage / Over Temperature
4. Cooling by free air convection
5. 1U low profile
6. Withstand 5G vibration test
7. LED indicator for power on
8. No-load power consumption<0.75W
9. 100% full load burn-in test
10. High operating temperature up to 70°C
11. High efficiency, long life and high reliability

Specifications:

1. Model: LRS-200-24
2. Brand: Mean
