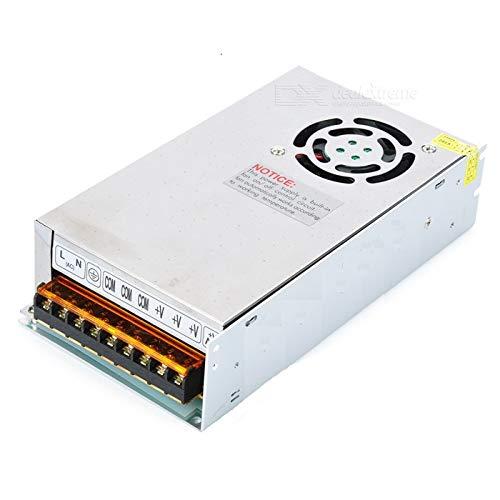

24V 10A SMPS 240W AC-DC Metal Power Supply S-240-24
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
Switched-mode power supply (SMPS) can convert 100-250V AC to 24V DC. It can provide up to 10A maximum current. All types of protection are provided in the supply.
Features
- Output Over Voltage Protection, Over Current Protection, Short Circuit Protection, and Surge Protected output are provided.
- Metal Case is provided
- No Minimum load is required
- High Efficiency, Reliability & low energy consumption
Specification
| Input Voltage | 110V-220V AC 50 / 60Hz |
| Output Voltage | 24V DC, 10A |
| Rated Power | 240W |
| Ripple and Noise | 180mVp-p |
| Voltage ADJ. Range | 20~28V |
| Protections | Output Over Voltage Protection, Over-Current Protection, Short Circuit Protection, Surge Protected Outputs |
| FAN Control | RT1≥40°C FAN ON, ≤35°C FAN OFF, ≥70°C output shutdown |
| Dimensions (LxWxH) | 200x110x50 (mm) |
| Weight | 544 gm |
| Country of Origin | China |
